Why Hallmark 4G?

One stop solution
One stop solution
Zero – maintenance
Zero – maintenance
Intuitive software
Intuitive software
Accurate Processing
Accurate Processing
Error-free operations
Error-free operations

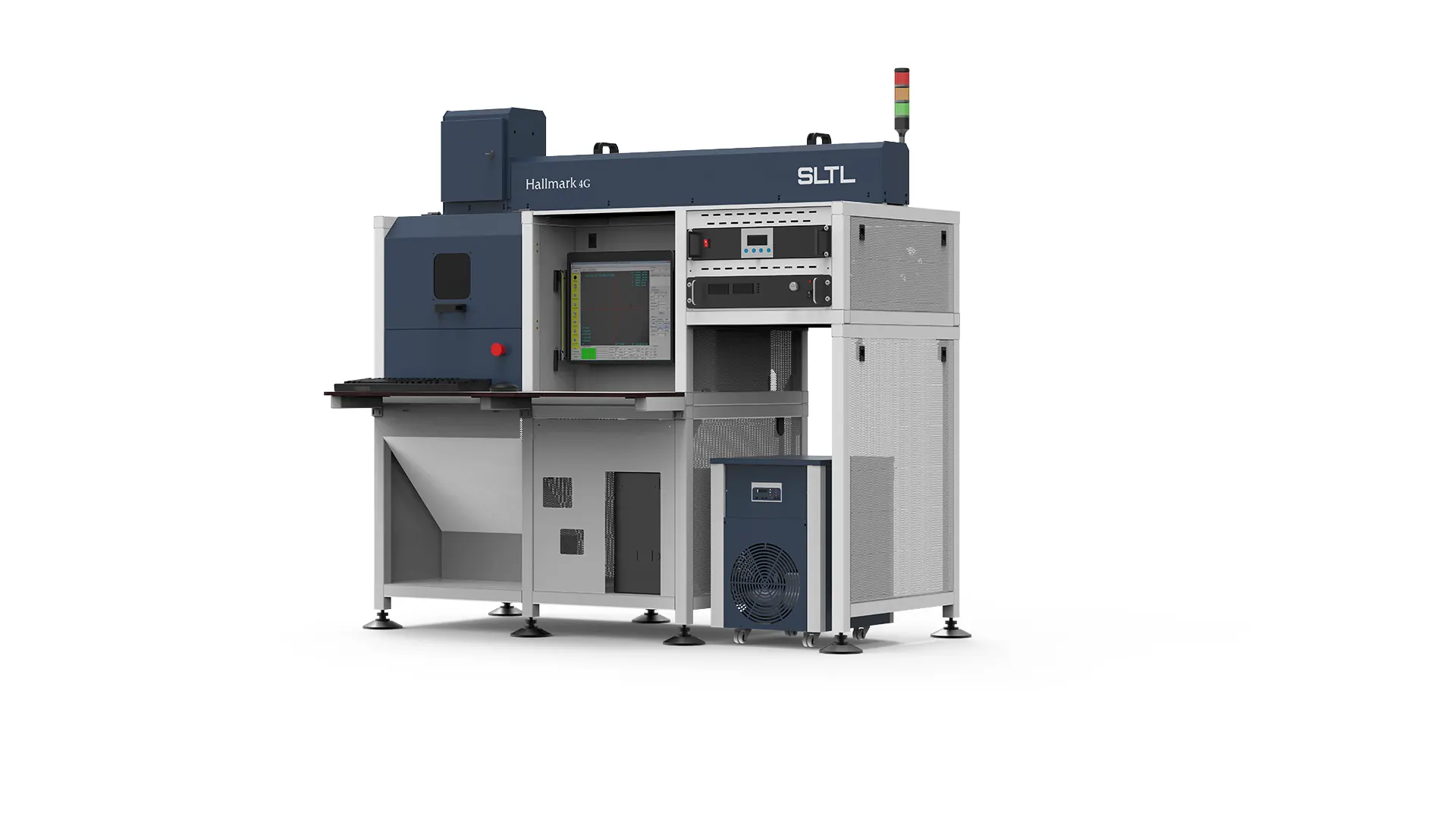

4p Diamond Laser Machine - Hallmark 4G

4p Diamond Laser Machine - Hallmark 4G

Sawing | Crowning | Bruiting | Cone Blocking

SLTL Group is the eminent manufacturer & supplier of the 4p diamond laser machine. One such development is the Hallmark 4G, a perfect blend of advanced innovation with the best practices and a must for all Diamond Manufacturers around the World. Hallmark, 4G is an all-in-one Diamond Processing System that can perform Table Sawing, Crowning, Bruiting, and Cone Blocking with the one-time fixing of the diamond rough. It is the 4th generation laser processing machine with inbuilt software for laser beam stability & robotic CNC control features.

Building a reliable technical experience!

Ever since incorporation, we have been making our own way through futuristic technology and ground-breaking innovations.

  • Overview
  • Features
  • Technical Specification
  • Applications

Product Description

It is an all-in-one diamond processing system that is capable to perform table sawing, crowning, bruiting, and cone blocking with the single-time fixing of diamond rough.

Process





Sawing
Sawing

Hallmark 4G
Hallmark 4G

Coning
Coning

One Stop Solution

One Stop Solution

This diamond multi-processing system performs Table sawing, Crowning, Bruiting & cone blocking, with high accuracy and speed at a marginal time without any operator’s interference in a single setup. Hallmark 4G can also be integrated with our planer machine so that even the planning process gets clubbed with the operations to minimize human errors.

Zero Maintenance

Zero Maintenance

Being manufactured by experts, it is a highly durable machine that can outperform multiple processes with negligible maintenance requirements. Its high-grade optics and advanced technology clubbed in a single, compact, and scratch-proof body eliminate the additional charges subsequently reducing the maintenance cost.

Minimized Wastage

Minimized Wastage

The Gain is all yours while processing the diamond rough as SLTL provides you with an almost nil breakage rate due to RTLS (Real Time Laser System). Extremely focused, stable, and accurate beam profile to achieve weight loss which provides you with fewer operation errors. In the form of Hallmark 4G; SLTL delivers an advanced processing system that ensures better quality output and reduced material wastage.

Ultra Modern Software

Ultra Modern Software

The most Progressive & easy to understand software is very straightforward. It is being designed to decrease the man-machine interaction, eventually resulting in minimized human errors. The in-house developed software not only helps in reducing the risk of damaging the stone but also automatically sets optimized laser parameters based on the size of a diamond.

Enhanced Productivity

Enhanced Productivity

Hallmark 4G is the new-generation robot for diamond processing that will help redefine laser operations in the diamond industry, with the potential to perform almost 80% of the Work. It is designed to provide you with a more systematic production cycle and error-free operations for saving a lot of processing time.

Model Hallmark-4g
Laser Source  SPAQ 75 W CW
 Laser Type  DPSSL
 Wave Length  1064 mm
 Beam Mode  TEM00
 Working Power  4 – 18 Watt
 CNC Table  170 × 170 mm
 Resolution  1 Micron
 Repeatability  3 Micron
 Accuracy  2 Micron
 Drive Type  AC SERVO
 Z Axis Travel  50 mm
 Power Supply  1 Phase, 15 Amp
 Power Consumption  1.7 KW
 Operating Environment
 Temperature / Humidity  20 – 30 °C / <60%
 Coolant Requirement  4 – 6 Ltr/Hr
 Dimension  1725 × 990 × 1610 mm
 Computer System: Intel Dual Core  1 GB, 160 GB HHD, 17″ LCD



Accessories:

Set-up station
USA made Diode module (NG)
Interface with planner machine possibility
Power & frequency control interface with software

Applications

Diamond & Jewellery

Diamond & Jewellery

Meticulous shaping of Cone

The ultimate shaping of the diamond completes when the cone-shaped lower part of the diamond is processed. And Hallmark 4G brilliantly shapes the cone with negligible weight loss, optimum breakage, and minimum maintenance costs.

Diamond & Jewellery

Diamond & Jewellery

Accurate Table Sawing

Hallmark 4G – diamond sawing machine outperforms in separating the differentiated pieces from a diamond rough for the initial shaping of the gemstone. It applies a unique method that smoothens the top surface of the rough stone with high accuracy and minimum wastage of diamonds.

Diamond & Jewellery

Diamond & Jewellery

Get Perfect Crown

Hallmark 4G is the best fit for shaping the perfect surface between the table and girdle to get the perfect crown with optimum weight loss, and lower breakage.

Diamond & Jewellery

Diamond & Jewellery

Precise Bruiting

It gives the perfect shape & removes the unwanted surface which involves shaping the circumference of a diamond separating the crown and pavilion.
