2D Fiber Laser Cutting System

Vector

Power: 4 kW to 30 kW
Material: Mild steel, Stainless steel, Aluminum, Brass, Copper, Galvanized Iron, Coated Sheet, Others.

Get a Quote
Vector Fiber Laser Cutting Machine Front View

Vector Fiber Laser Cutting Machine Front View

Vector (3X1.5) Fiber Laser Cutting Machine

Vector (3X1.5) Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Vector Fiber Laser Cutting Machine

Reasons you'll love Vector

Efficient Devices
Efficient Devices
IOT Enabled
IOT Enabled
Class One Enclosure
Class One Enclosure
Rigid Gantry
Rigid Gantry
Smart Lubrication
Smart Lubrication
Fiber Laser Cutting System - Vector

Fiber Laser Cutting System - Vector

SLTL – The World’s First manufacturer of Fiber Laser Cutting Systems, has introduced the ‘Vector’ fiber laser cutting machine, considering the specific needs of the metal cutting industry. The word “vector” itself essentially means “line”. Therefore, the machine’s design and the cutting process rely on lines to create the desired output. Thus, this machine provides a valuable function for sign makers and those working with digital graphics by cutting a wide range of substrates with high accuracy and quality. It’s perfect for cutting a wide range of materials with precision, mild steel, stainless steel, aluminium, brass, copper, Inconel, speciality alloys, as well as coated and textured metal sheets, may all be cut spectacularly with this futuristic laser cutting machine.

Building a Reliable Technical Experience!

Ever since incorporation, we have been making our own way through futuristic technology and ground-breaking innovations.

  • Overview
  • Features
  • Technical Specification
  • Applications

Product Description

This machine allows designs to be cut out of a variety of substrates with vector cutting’s high accuracy. The machine also has an automatic nozzle cleaning and replacement feature.

Loading and Unloading Automation

Loading and Unloading Automation

Vector is equipped with the benefits of loading and unloading automation which includes increased productivity, reduced labour costs, improved safety, minimized product damage, faster turnaround times, and enhanced overall supply chain efficiency. By automating these critical processes, businesses can achieve greater operational efficiency, reduce errors, and improve customer satisfaction by ensuring timely and accurate productivity.

Head Crash Protection

Head Crash Protection

Vector provides complete reliable and safe working operation with its intelligent technology which has inbuilt sensors to scan for any protruding particles on the cutting table allowing the cutting head to automatically move to the home position in case of any collision between the workpiece and the head. In case of any such disturbances in the working profile, the smart technology helps to overcome the collateral damage – the workpiece and the cutting head by, stopping the laser head’s movement until the path is cleared.

Auto Nozzle Changeover

Auto Nozzle Changeover

The system is upgraded for changing the nozzle automatically with a single operation. The nozzle changeover mechanism will work flawless for the finest metal processing and eliminating human error for nozzle changeover. The feature is responsible for a frictionless cutting experience with fewer operational efforts.

Class One Enclosure

Class One Enclosure

Though the laser machine utilizes a powerful laser, it is designed with supreme safety standards for secure process execution across the facilities. The CE Complied machines are designed and developed using a Class-1 laser safety enclosure structure to nullify the damages that may happen to the operators or nearby environment while the machine is in the operational stage.

Multi Stage Piercing

Multi Stage Piercing

Even when there are many individual piercings, the method is reliable for extremely fast piercing, resulting in less idle time and eliminate the material deformation of thick sheets. 2 Stage Piercing remarkably improves the efficiency of the laser-cutting machine, by significantly reducing the piercing time. While, 3 Stage Piercing is one of the most advanced features of this robust Laser Cutting Machine, specifically designed to ensure the effective processing of higher material thicknesses.

Anti-collision Mechanism

Anti-collision Mechanism

The anti-collision mechanism consists of snip, sew and parabolic leaps, this minimizes non-productive times which can happen due to parts tipping over when cutting thin sheet metal, and ensures that the sheet cut-out pieces do not collide with the laser head while processing and makes your machine permanently productive.

Matchless Efficiency

Matchless Efficiency

The Eco-friendly Vector comes with power-efficient technology, which ultimately reduces the running cost of the machine. The Fiber Laser System offers 50% energy savings among other laser cutting technologies, and state of art fume suction technology exceeds the fume suction methodology by removing more than 90% of fumes from the laser cutting environment. Thus making Vector the most efficient model for the metal-cutting process.

Dynamic Edge Control

Dynamic Edge Control

A laser, when properly focused and set for a material, cuts a part with a sharp edge. Dynamic Edge Control (DEC) decreases inflammation on the edges of the processing materials, synchronized laser with axial motion through the system. The cutting system operates laser power with the axis speed via the dynamic edge control (DEC) mechanism which reduces burning effects at the edges.

Safety at Its Best

Safety at Its Best

The pioneering fiber laser cutting machines are designed to ensure that enhanced Safety with a class 1 enclosure, light curtains, a hermetically sealed cabinet (lp55), and door interlocks. Laser safety windows keep the laser radiation intact inside the machine while the cutting process.

Technical Specifications

Laser Power 4 kW 6 kW 8 kW 10 kW 12 kW 15 kW 20 kW 30 kW
Mild Steel (MS) (O2) 22 (7/8″) 25 (1″) 28 (9/8″) 30 (19/16″) 40 (26/16″) 45 (7/4″) 50 (31/16″) 60 (19/8″)
Mild Steel (MS) (N2 / Air) 6 (1/4″) 8 (5/16″) 10 (3/8″) 12 (1/2″) 12 (1/2″) 16 (5/8″) 20 (13/16″) 25 (1″)*
Stainless Steel (O2) 10 (3/8″) 10 (3/8″) 10 (3/8″) 10 (3/8″)* 10 (3/8″) 10 (3/8″) 10 (3/8″) 10 (3/8″)
Stainless Steel (N2 / Air) 10 (3/8″) 16 (5/8″) 20 (13/16″) 25 (1″) 30 (19/16″) 32 (5/4″) 35 (11/8″)* 40 (25/16″)*
Aluminium (Al) (N2) 10 (3/8″) 16 (5/8″) 21 (13/16″) 25 (1″) 30 (19/16″) 32 (5/4″) 35 (11/8″)* 40 (25/16″)*
Brass (Br) (N2) 8 (5/16″) 12 (1/2″) 16 (5/8″) 20 (13/16″) 25 (1″) 30 (19/16″) 32 (5/4″)* 35 (11/8″)*
Copper (Cu) (O2) 6 (1/4″) 8 (5/16″) 10 (3/8″) 12 (1/2″) 16 (5/8″) 18 (11/16″) 20 (13/16″) 22 (7/8″)
Galvanized Iron (Gl) (N2 / Air) # 3 (1/8″)* 3 (1/8″)* 3 (1/8″)* 3 (1/8″)* 3 (1/8″)* 3 (1/8″)* 3 (1/8″) 3 (1/8″)
Power Consumption** 24 Kw 32 kW 40 kW 48 kW 56 kW 68 kW 85kW 120kW



Working Area 3015 4020
X axis 1550 (61″) 2100 (82″)
Y axis 3100 (122″) 4100 (161″)
Z axis 150 (6″) 150 (6″)
Max. Acceleration 3 G 2 G
Simultaneous Speed 210 m/min 140 m/min
Position Accuracy (±)0.050 mm/meter (0.002″) (±)0.050 mm/meter (0.002″)
Repeatability (±)0.020 mm/meter (0.001″) (±)0.020 mm/meter (0.001″)
Work Piece Weight 900 kg 1650 kg

* The quality of cut depends upon the attributes of metal, its surface properties and the conditions in which the cutting operation is done.
Metal with high thickness tend to have striation at the lower edges.
** The power consumption indicated in the table is measured in the machine’s peak performance. It includes the connected load of
laser source, controller, fume extractor and chiller.
# Galvanized Iron (GI) only comes up to 3mm thickness in market



Accessories:

  • Calibration
  • Vision Check
  • Centering
  • Auto Nozzle Changer
  • Nozzle Cleaning
  • Smart Camera
  • Countersink

Applications

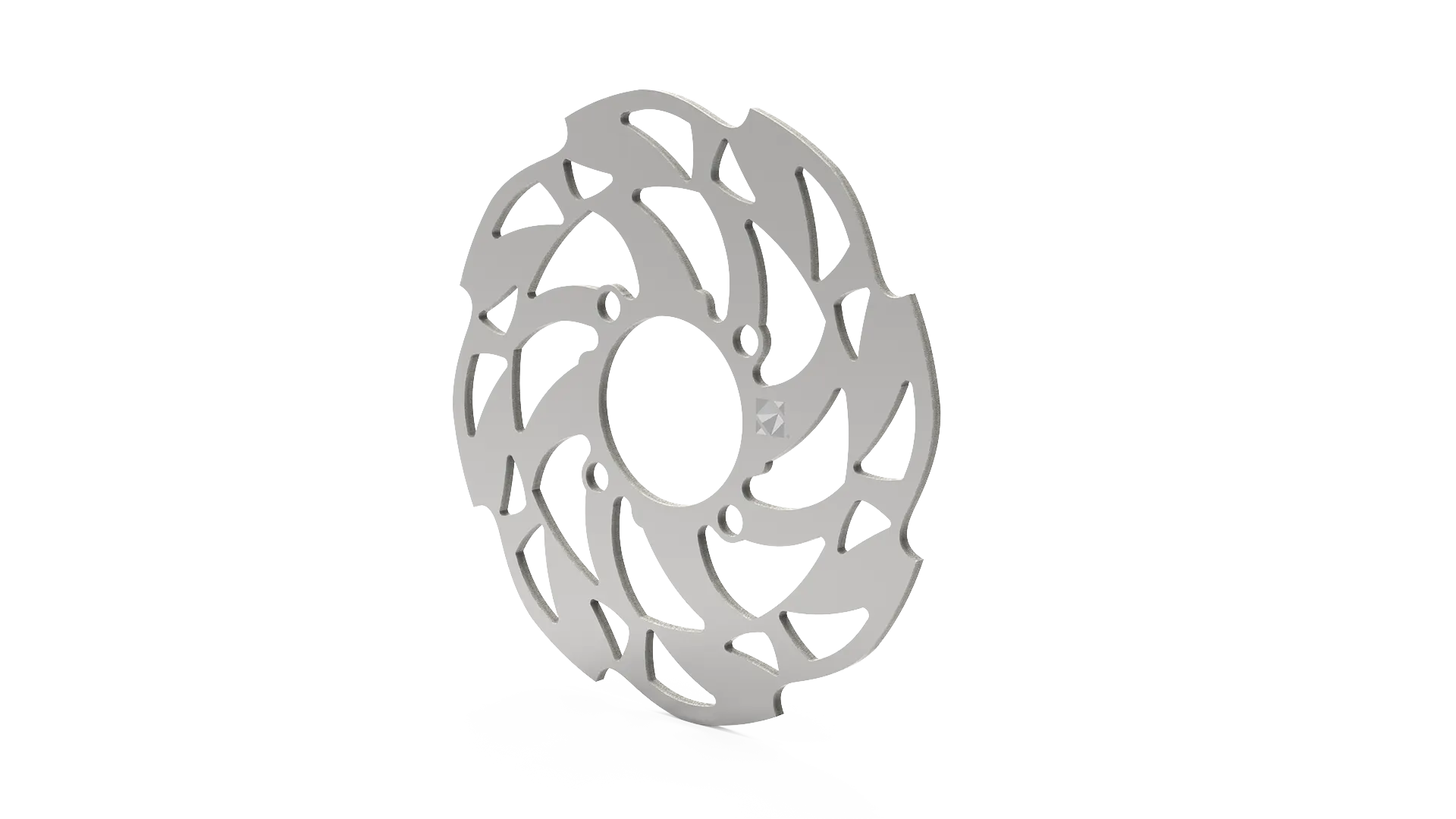

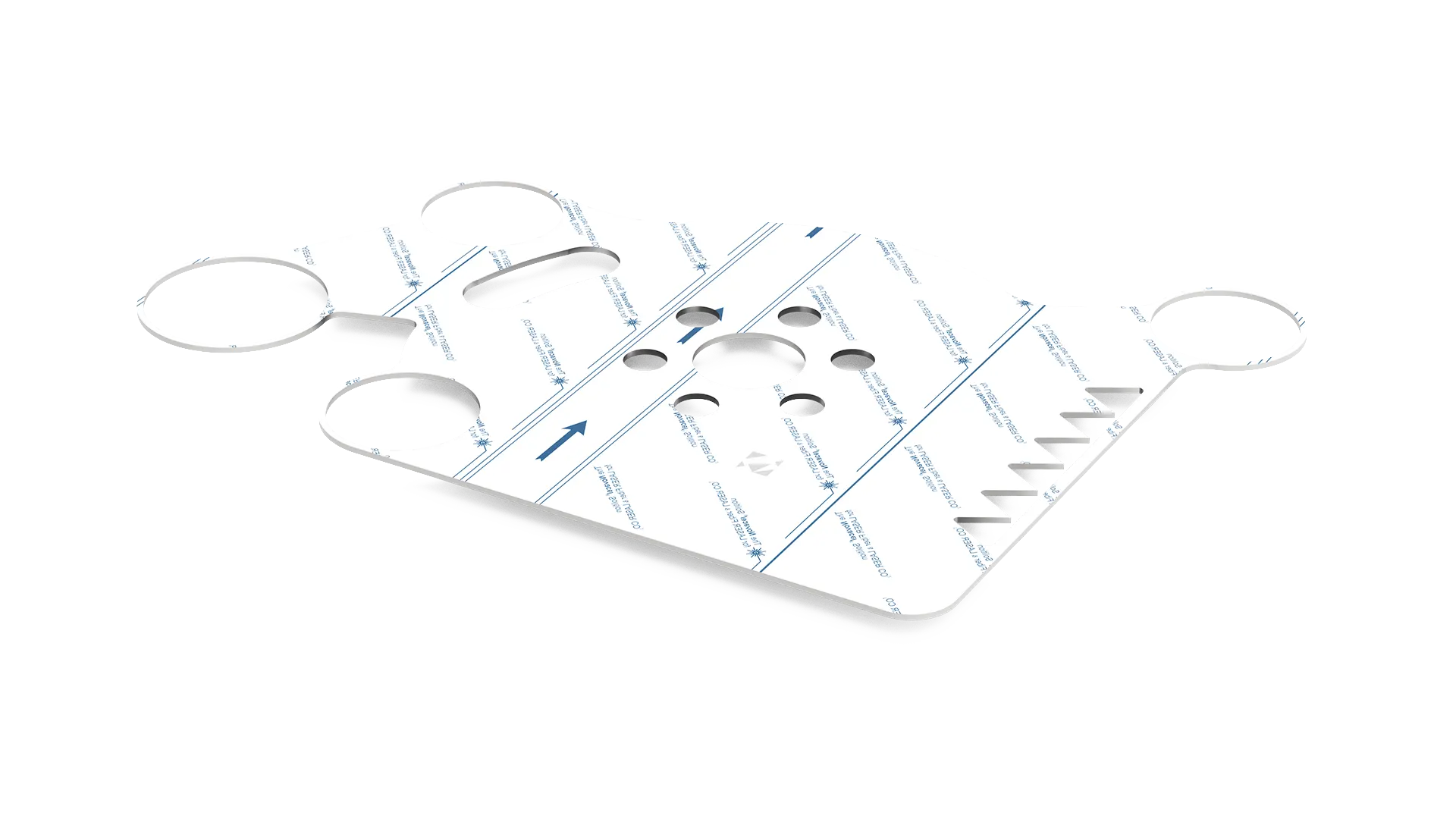

Quality finishing for Metal Cutting

Quality finishing for Metal Cutting

One of the most common uses for laser cutting is to cut metal with precision & accuracy. It can be used on a huge number of different metals, including steel, tungsten, aluminium, nickel & brass. Regardless of the industry or the work or whatever be the thickness of the metals, laser cutting can be used to deliver the same clean cuts and smooth finishes every time on time. It is used to cut metal for components and structural shapes, such as for the body of a car or the casing of a mobile phone.

Gives the perfect shape for Utensils

Gives the perfect shape for Utensils

Laser cutting is a technology that is well-suited to the production of utensils. Its precision, versatility, and efficiency make it an ideal method for cutting intricate designs and patterns into a wide range of materials, allowing for the creation of unique and detailed utensils at a high production rate. This allows for large quantities of utensils to be produced quickly and efficiently.

Agriculture & Farm Industry

Agriculture & Farm Industry

The agriculture industry heavily relies on tractors, harvesters, and other farm machinery for its operations. These machines are composed of numerous metal components, such as brackets and gear parts, that are critical for smooth functioning. With the advent of 2D fiber laser cutting technology, these metal components can now be cut with precision and efficiency. This cutting technology offers numerous benefits to the agriculture industry, including increased speed, accuracy, and reduced waste. The 2D fiber laser cutting machine is an excellent choice for manufacturers looking to streamline the production of metal parts for tractors and farm machinery. It ensures consistent quality, increases production capacity, and reduces overall costs.

Automobile and Automotive Industry

Automobile and Automotive Industry

The automotive industry constantly strives for efficiency and precision in their production processes. The 2D fiber laser cutting machine offers just that, with the ability to cut various metal components such as gears, brackets, and other small parts with accuracy and speed.
This cutting-edge technology has revolutionized the way automotive components are produced, offering numerous benefits including reduced production time and costs, and improved precision and quality.
