SLTL unveils & offers- The Future X a new generation High Power 2D Metal Fiber Laser Cutting Machine for high precision sheet metal cutting, as the name suggests, it’s high on its factor X with its matchless instinctive reflexes. The Future X model is equipped with Dynamic Edge Control and a linear motor drive with a rigid gantry structure enabling 3G acceleration. The cost-effective 2D laser cutter with up to 30 kW fiber laser and higher brilliantly cuts metals like mild steel, stainless steel, aluminium, brass, copper, titanium, and coated and textured metal sheets. Backed with dynamic edge control future X model is ultra-efficient, marvellously effective and its high performance makes it a must for your manufacturing unit.
Ever since incorporation, we have been making our own way through futuristic technology and ground-breaking innovations.
Newest fiber laser cutting with high precision and a high factor X, coupled with a linear motor drive and rigid gantry structure that allows for 3G accelerations.
The Linear motor drive with a rigid gantry structure enables 3G acceleration thus increasing productivity by saving time and rendering precision finish and consistent quality for a longer duration.
The tool is installed in the laser head for self-driven operation. It automatically changes the focus of the lens as per the object & the application. With an alert auto-focusing function, FutureX can automatically adjust the focus to the most suitable position when processing different materials and thicknesses. This will significantly improve the efficiency of the laser cutting machine, and reduce the piercing time of thick sheets significantly.
Though the laser machine utilizes a powerful laser, it is designed with supreme safety standards that enable secure execution across the facilities. This system has enhanced safety with a class-1 enclosure, light curtains, a hermetically sealed cabinet (lp55), and door interlocks. Laser safety windows keep laser radiation intact inside the machine while the cutting process.

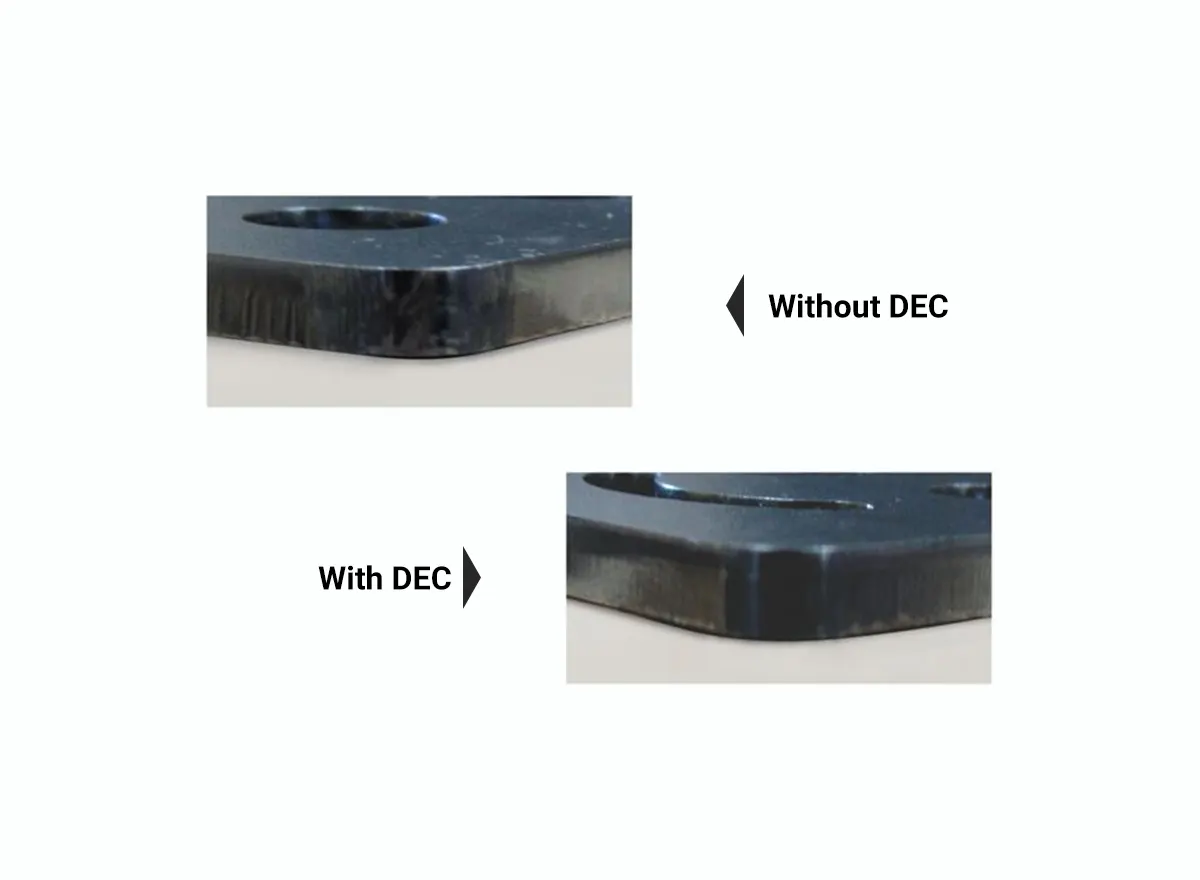

A laser, when properly focused and set for a material, cuts a part with a sharp edge. Dynamic Edge Control (DEC) decreases inflammation on the edges of the processing materials, synchronized laser with axial motion through the system. The cutting system operates laser power with the axis speed via the dynamic edge control (DEC) mechanism which reduces burning effects at the edges.
FutureX is equipped with a High-end 64-bit CNC controller along with a user-friendly operating interface. This magnificent controller responds within nanoseconds which makes the machine super responsive. The laser starts at a predetermined point and continues along the course of the line until the shape has been thoroughly cut. It increases productivity by saving time and executing precision finish.
Speed up the cutting process by eliminating the manual alignment of the sheet for each cutting operation. Auto-sheet orientation feature enables automatic orienting of the program to that angle in which the sheet has been kept which ultimately eliminates the non-productive time of rearranging the sheet.
The system with up to 15KW fiber laser brilliantly cuts on Thin To Thick metal components like mild steel, stainless steel, aluminium, brass, copper, titanium, HRC, CRC, and other coated & textured metal sheets with high Precision and can achieve faster cutting speeds. Precise laser cutting can be achieved with Future X which provides complete control over the cutting of different materials. This allows the machine to cut even the complicated profiles or contours precisely.
Equipped with a powerful mechanical structure the FutureX is designed with an anti-collision system. This smart feature allows you to use methods like snipping, sewing, and parabolic leaping to restrict the movement of the sheet when cutting, for uninterrupted material processing. The anti-collision mechanism minimizes non-productive times which can happen due to parts tipping over when cutting thin sheet metal and makes your machine permanently productive.
One of the key features to process high-speed cutting applications in Fiber laser cutting machines, FLYCUT performs the continuous cutting of the desired shape without lifting up the laser head giving a boost to the processing speed by reducing the head travel movements.
To minimise melting of sharp edges while cutting thicker materials, a cooling point has been specified for a set time period. Here, the assist gas will be turned on continuously, and the laser will be turned off for the stated time period.
Laser Power (kW) | 6 | 8 | 10 | 12 | 15 | 20 | 30 |
---|---|---|---|---|---|---|---|
Mild Steel (MS) (O2) | 25 (1″)* | 28 (9/8″)* | 30 (19/16″)* | 40 (25/16″)* | 45 (7/4″)* | 50 (31/16″)* | 60 (19/8″)* |
Mild Steel (MS) (N2 / Air) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* |
Stainless Steel (SS) (O2) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″)* | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) | 10 (3/8″) |
Stainless Steel (SS) (N2 / Air) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* | 40 (25/16″)* |
Aluminum (Al) (N2) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* | 40 (25/16″)* |

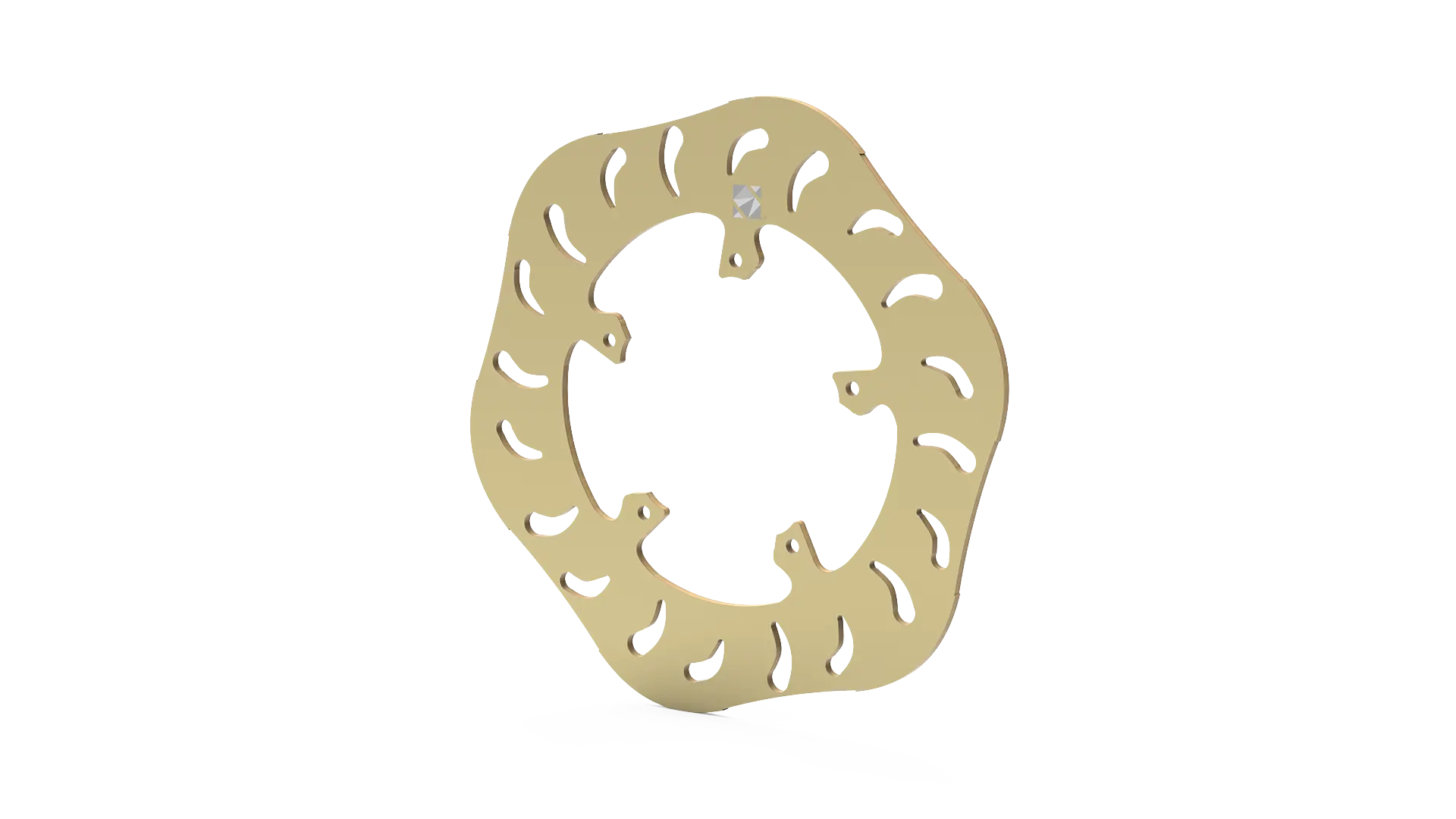

Brass (Br) (N2) | 12 (1/2″) | 16 (5/8″) | 20 (13/16″) | 25 (1″)* | 30 (19/16″)* | 32 (5/4″)* | 35 (11/8″)* |
Copper (Cu) (O2) | 8 (5/16″) | 10 (3/8″) | 12 (1/2″) | 16 (5/8″) | 18 (11/16″) | 20 (13/16″) | 22 (7/8″) |
Galvanized Iron (GI) (N2 / Air) # | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) | 3 (1/8″) |
Power Consumption** | 32 kW | 40 kW | 48 kW | 56 kW | 68 kW | 85 kW | 120 kW |
Working Area (X Y Z) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) | 1550 X 3030 X 150mm (60″ X 120″ X 6″) |
Maximum Speed (X Y) | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* | 220 m/min (4724 ipm)* |
Position Accuracy | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) | (±)0.0050 mm (0.0002″) |
Repeatability | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) | (±)0.020 mm (0.001″) |
Work Piece Weight | 900 kg | 900 kg | 900 kg | 900 kg | 900 kg | 900 kg | 900 kg |
*Quality of the cut depends upon the attributes of metal, its surface properties and the condition in which the cutting operation is done. Metals with high thickness tend to have striation at the lower edges
**Quality of the cut depends upon the attributes of metal, its surface properties and the condition in which the cutting operation is done.
***Metals with high thickness tend to have striation at the lower edges.
