Diode Pumped Solid State Laser

SLTL Group one of the leading manufacturers of laser solutions develops compact diode-pumped solid-state laser products.  The Group’s prolific portfolio of solid-state diode lasers includes IR (infrared), UV (ultraviolet), Green laser, Violet laser, Blue laser, and Red laser systems.

The diversified lasers (Nd: YAG, Nd: YLF, Nd: YVO4, and Second harmonic generation (SHG), third harmonic generation (THG), Fourth harmonic generation (FHG) of YAG, YLF and YVO4) are functional in both Continuous wave and Q-switched pulsed output. These laser systems are extensively utilized for research & development as well as in industrial instrumentation applications viz. Non-linear optics, photo-acoustic tomography, Diamond marking, scribing, cutting, holography, biomedical, fluorescence, neuroscience tools, interferometry and material processing and fiber communication.

Building a Reliable Technical Experience!

Ever since incorporation, we have been making our own way through futuristic technology and ground-breaking innovations.

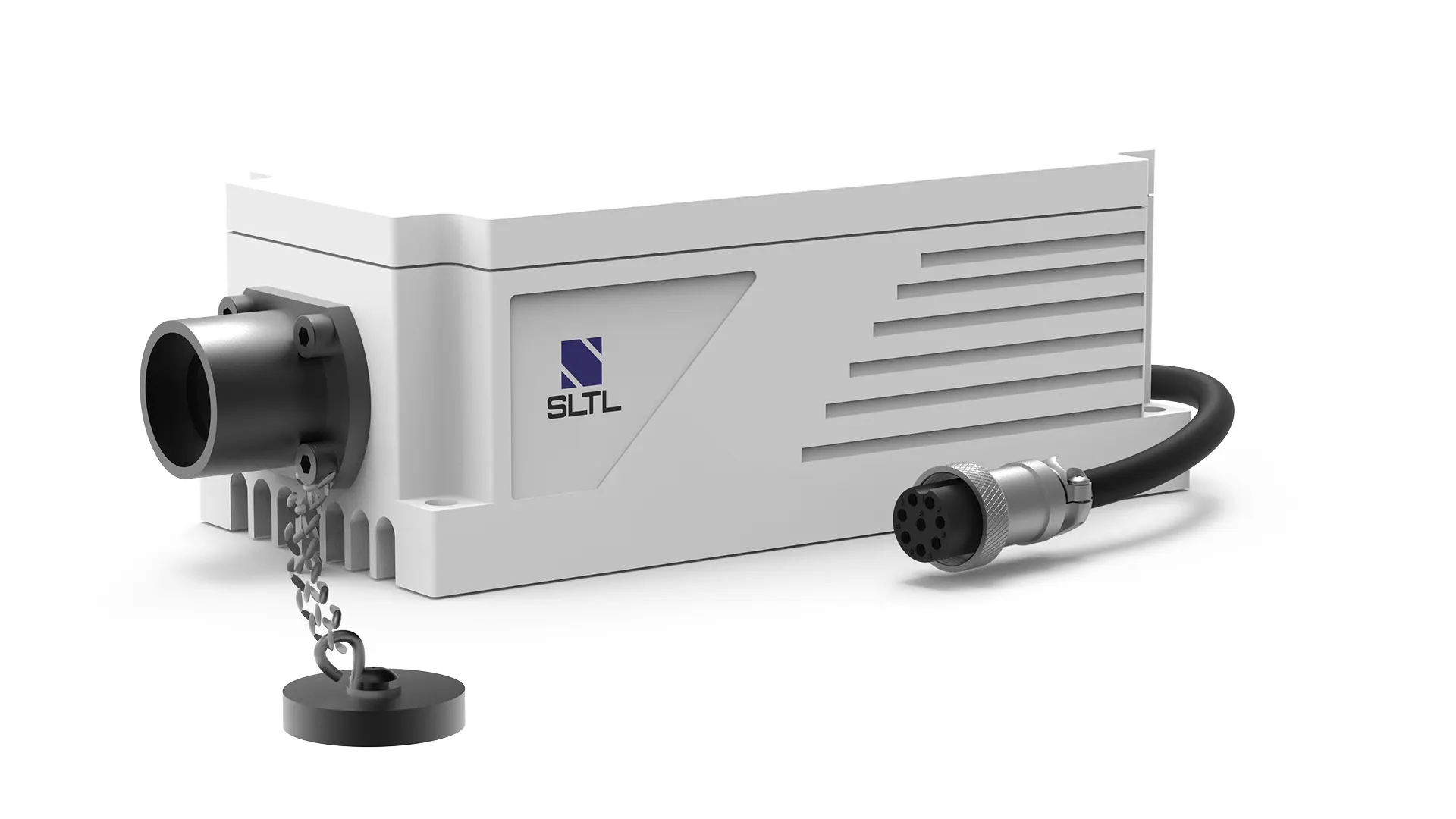

LD PUMPED Q-switched IR LASER
Download Brochure Enquire Now
  • Overview
  • Features
  • Technical Specification
  • Applications

Product Description

The 1064 nm all-solid-state Q-switched laser delivers great performance and is widely utilised in R&D based industry. The laser diode has demonstrated reliability, as well as the capacity to operate at high energies and repetition rates with a single longitudinal mode pulse duration. It produces little noise and consumes very little power in a small laser housing when used in TEMoo mode.

Key Features of this product

Key Features of this product

  • Compact in Size
  • Excellent Reliability
  • High peak power
  • High repetition rate
  • Nanosecond Pulse Duration
  • Magnificent Power Stability
  • TEMoo mode
  • High Beam Quality M²
  • Harmonic generations: By frequency doubling (266 nm & 355 nm generation)
Model LD PUMPED Q-SWITCHED IR LASER
Operating Mode Pulsed – 1KHz
Central Wavelength 1064 ± 1nm
Transverse Mode TEMoo
Power Stability (rms,Over 4 hrs)  <2%
Beam diameter at Aperture 1.5 mm
Beam Divergence angle <1.8 mrad
M² Factor < 1.2
Warm up time <10min
Pulse Energy  ≥ 70 µjoule @ 1KHz
Pulse Duration 10nsec
Rep Rate 1 KHz
Operating Temperature 10 ~ 35° C
Power Supply  220VAC, 50 Hz  SLTL-PSU
Aiming Laser for IR Beam 5mw @ 650nm
Heat Sink mounted
Expected Lifetime >10000 hrs
Warranty 1 year

Accessories:



  • IR detector Viewer Card Suitable for NIR Wavelength :

Absorption  range: 700-1400 nm
Emission Range: Visible

  • Safety Goggles



Applications

Industrial Laser

Industrial Laser

Applications

♦ Non-linear Optics  ♦  Photo-acoustic Tomography  ♦  Diamond Marking  ♦  Holography  ♦  Biomedical  ♦  Fluorescence  ♦  Neuroscience tools  ♦  Interferometry  ♦  Material processing  ♦  Fiber Communication
