Experience the complete T-Series live — T6150, T6200, T6300 & T8350 running back-to-back. Watch bevel cuts, auto-loading, tube slitting and smart nesting software in action. Bring your profiles. Talk to our engineers directly.
Free entry · Limited seats available
Your details are safe. No spam, ever.

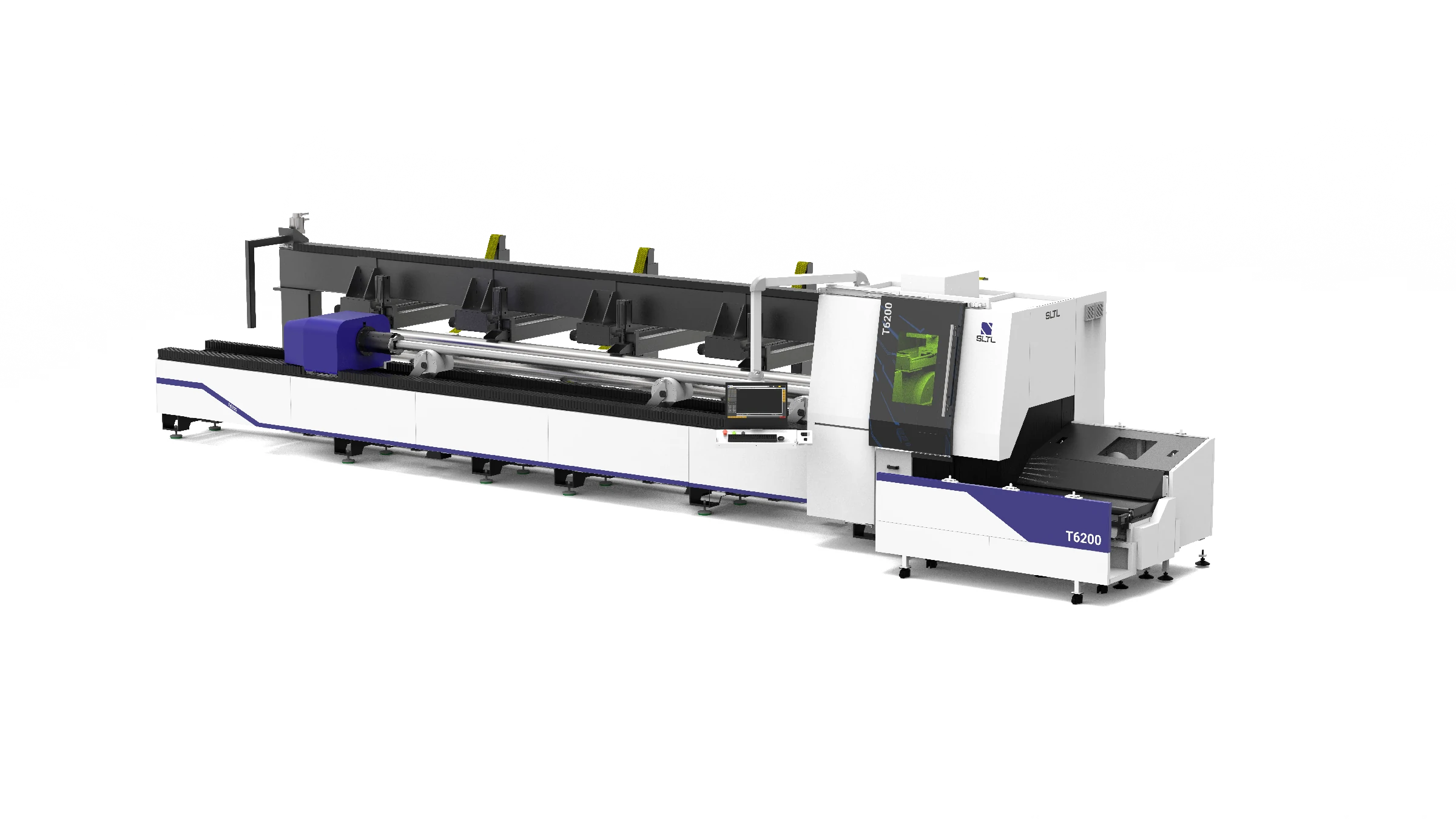

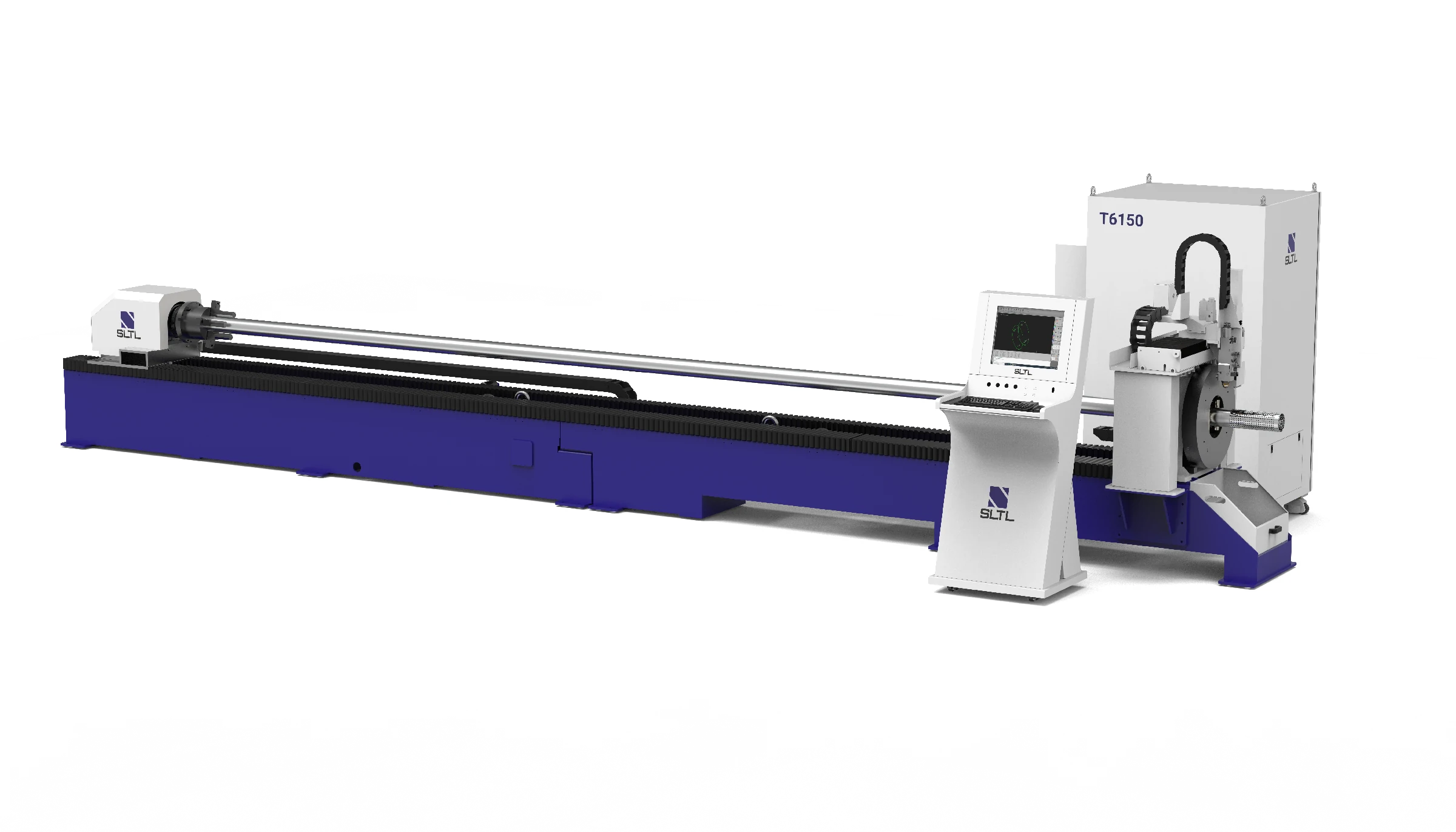

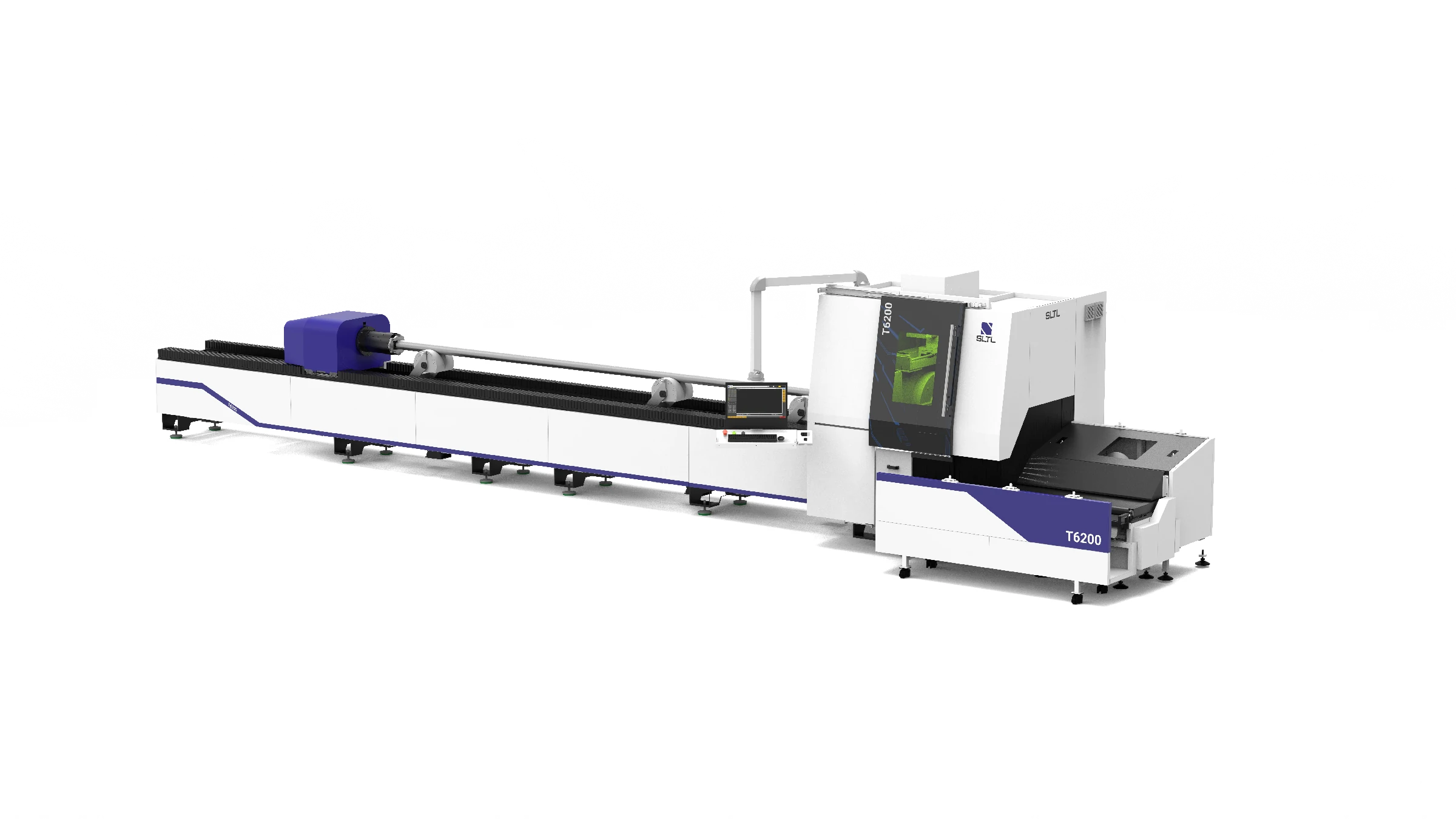

Every model from the T-Series will perform live cuts throughout the day. Compare specs side-by-side, watch demonstrations, and speak with application engineers at each station.
Materials: Stainless Steel (SS) · Mild Steel (MS) · Aluminium (AL) · Copper (Cu) · Brass (Br) · Galvanized Iron (GI)

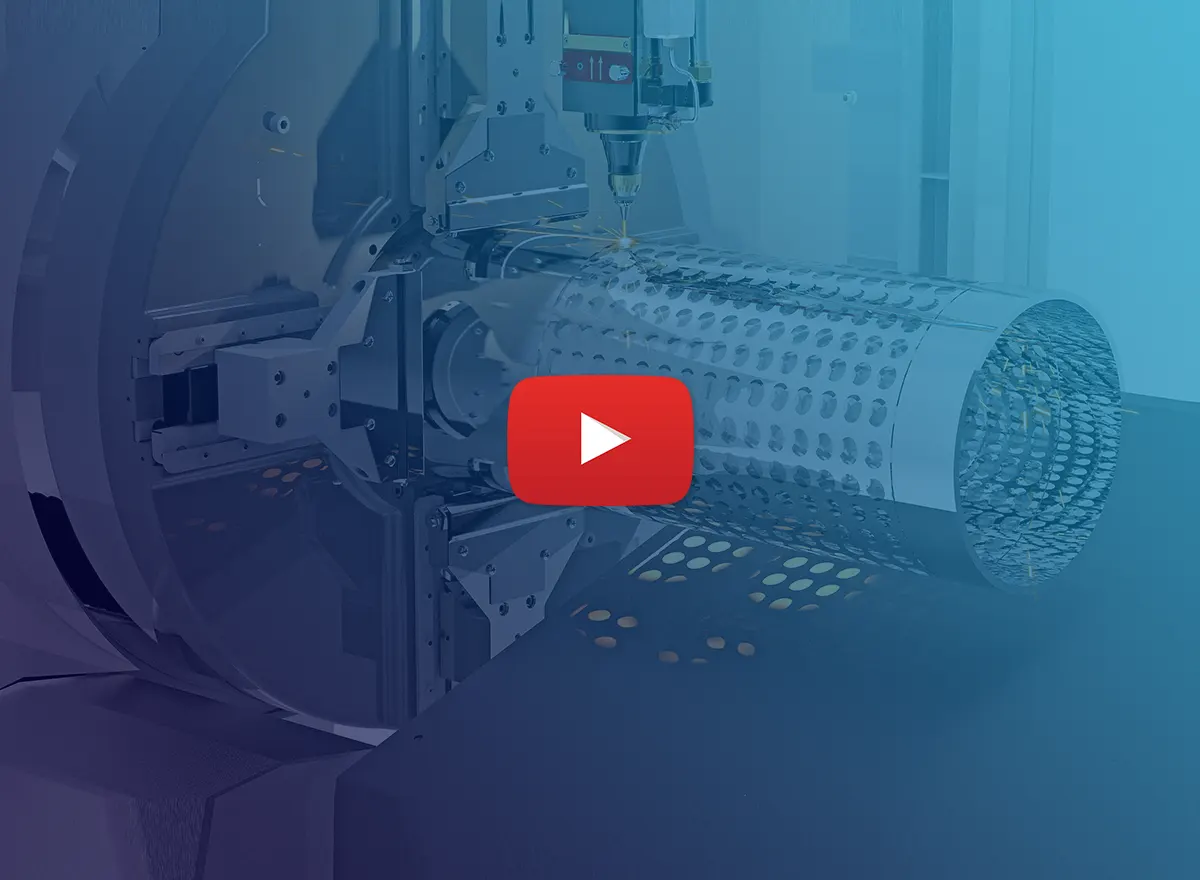

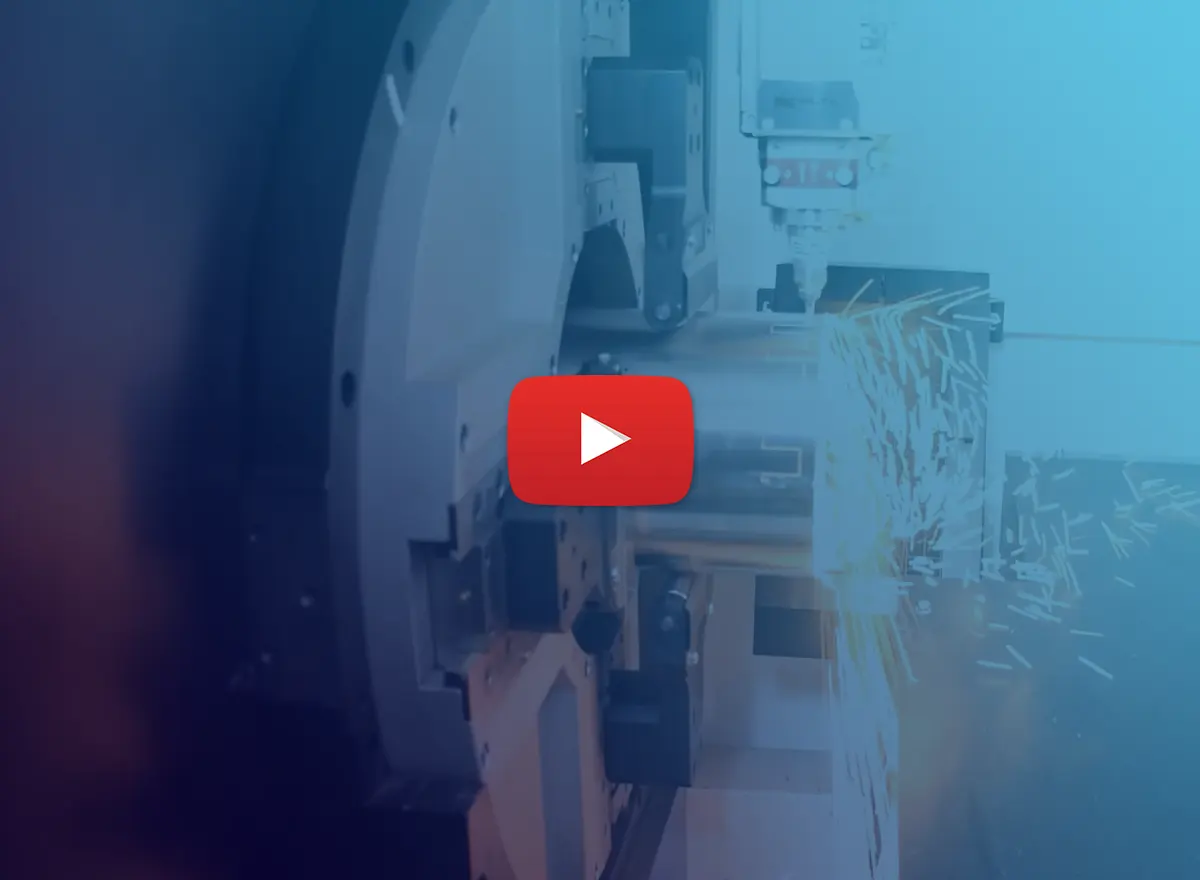

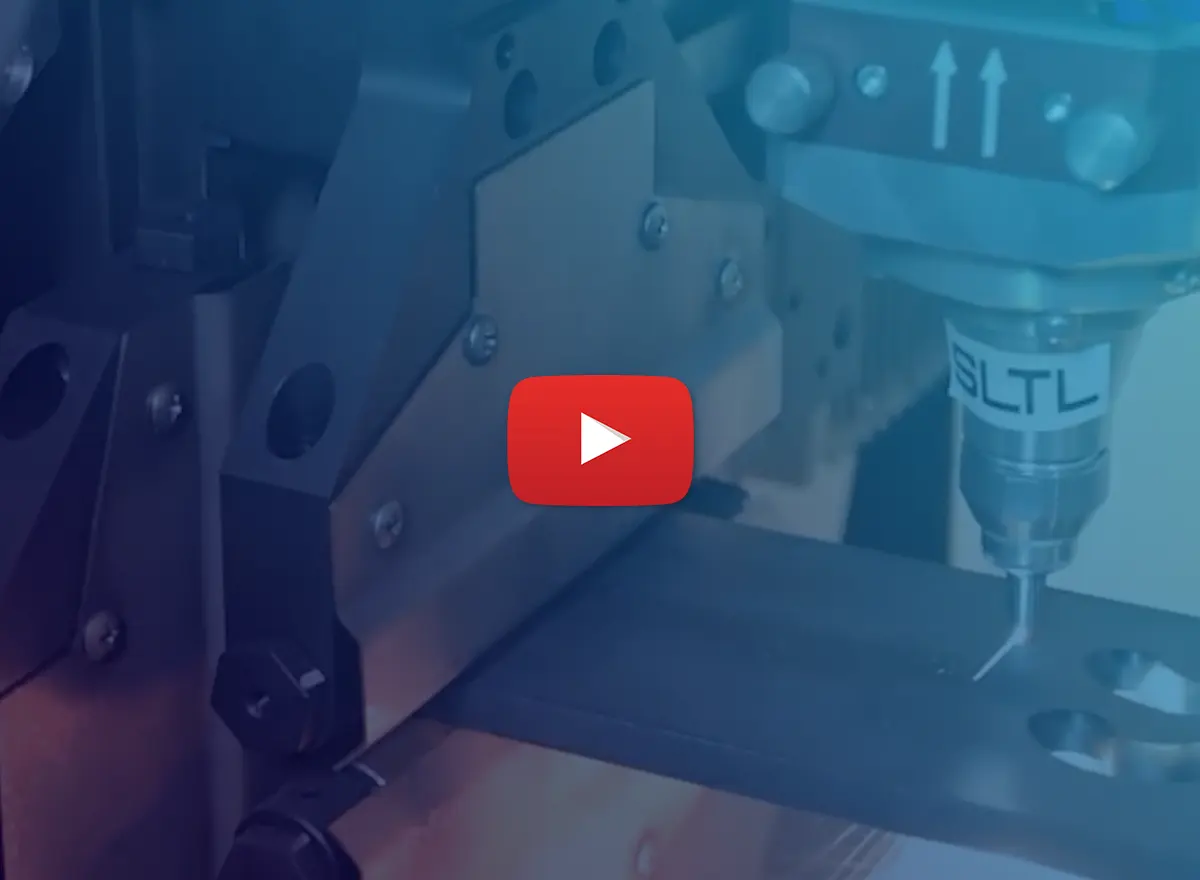

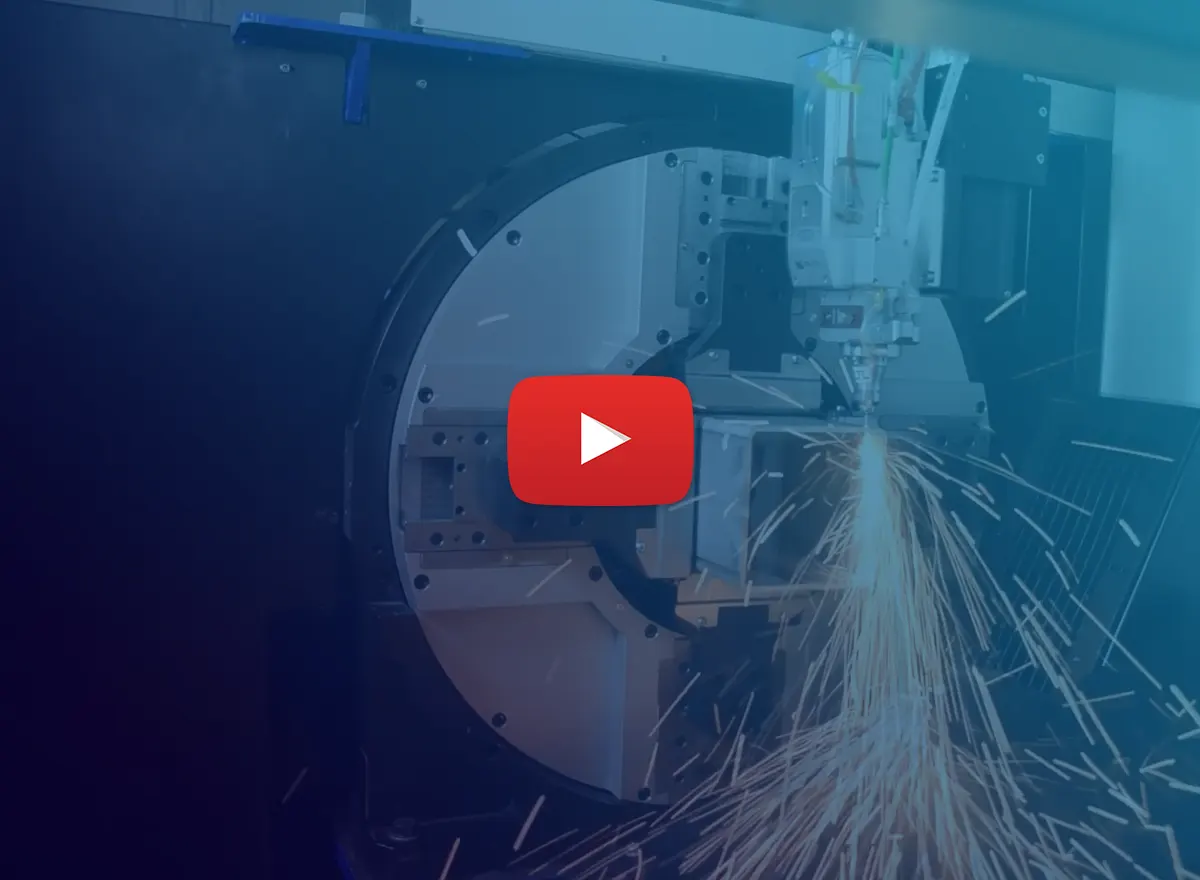

Watch SLTL's T-Series cut complex profiles, bevel angles and special shapes at full industrial speed — the same machines you'll see live at Demo Day.
Each station runs a full live demonstration with SLTL engineers on hand to explain every detail and answer your application-specific questions.

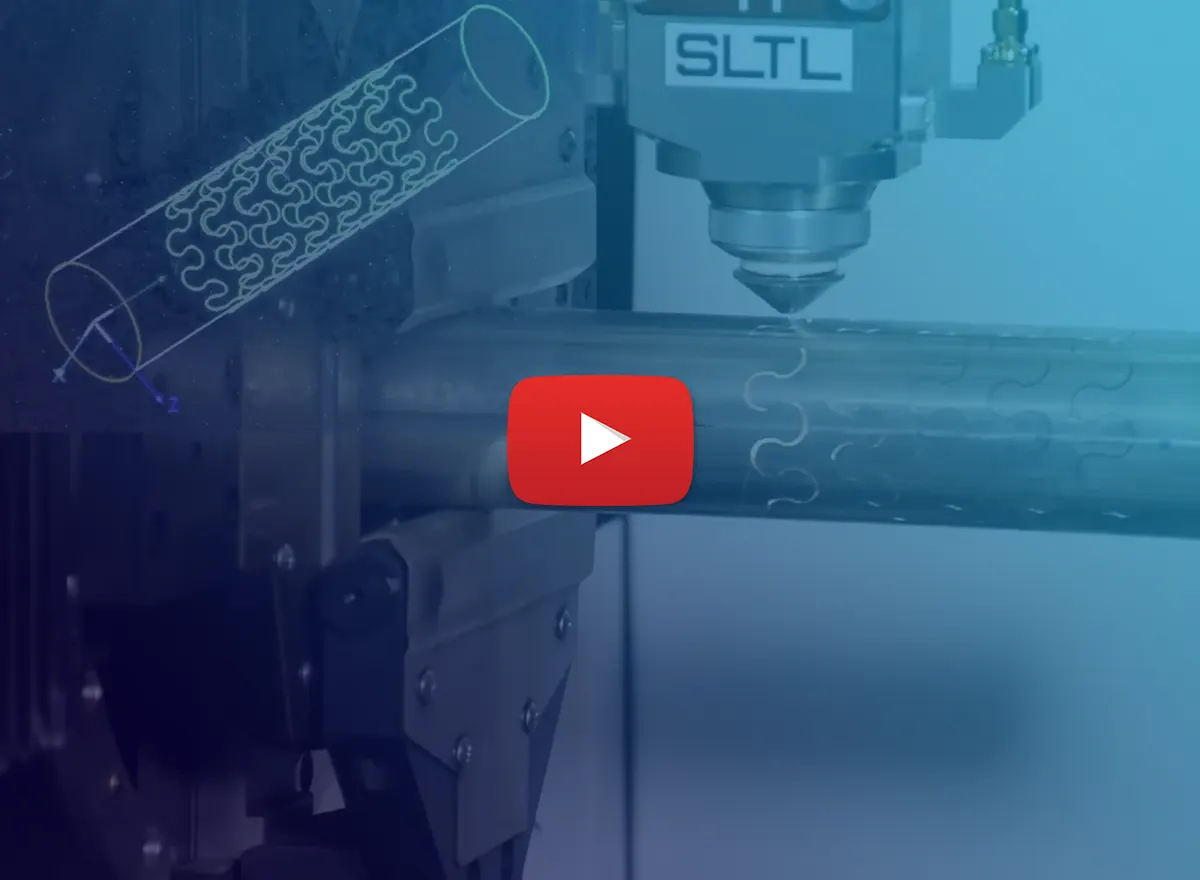

Watch the system execute 0°–45° bevel cuts using 4-axis, 5-axis and 6-axis cutting heads. Achieve zero-clearance weld-ready edges without secondary processing, reducing manpower and eliminating material wastage.

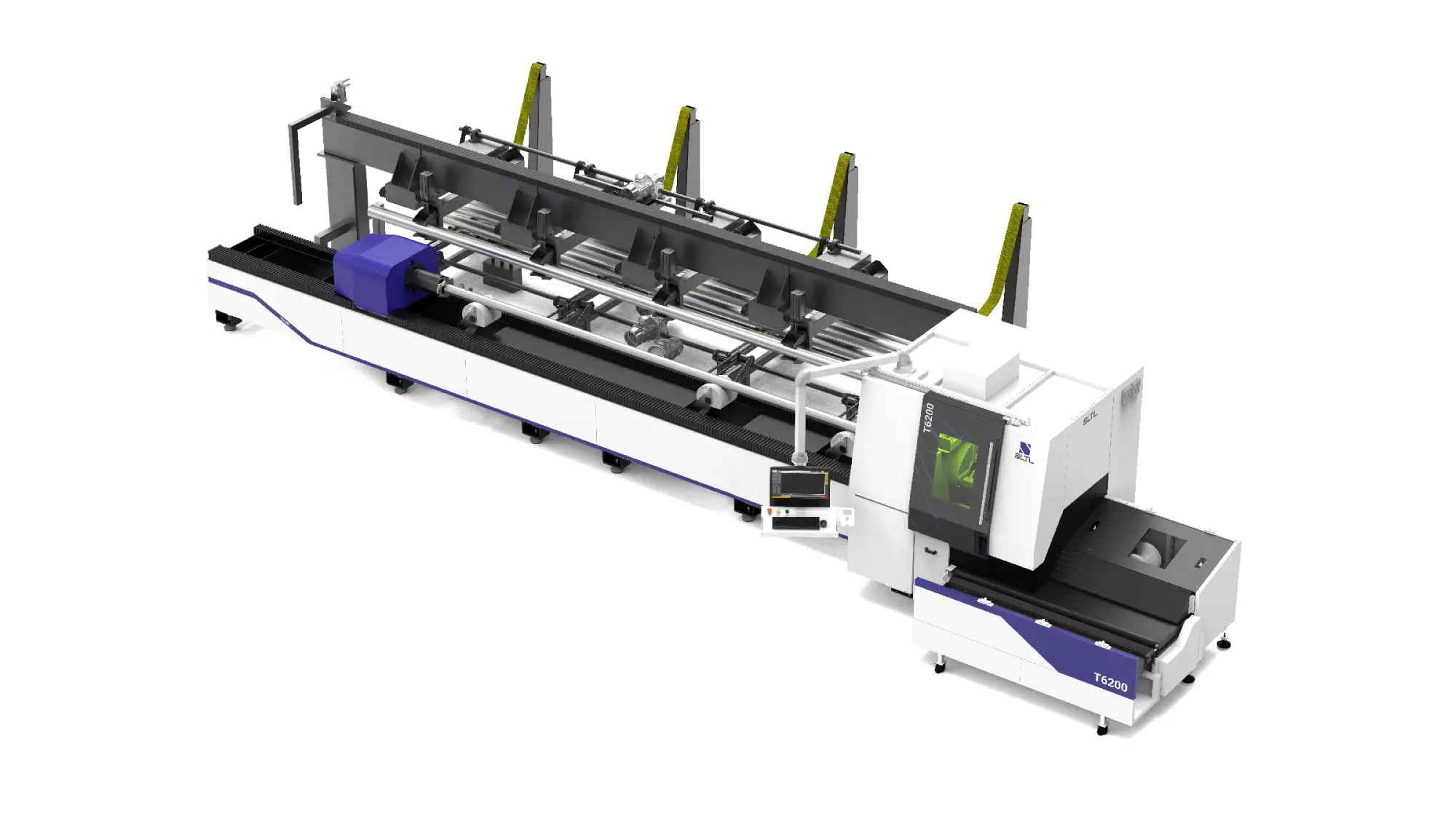

See SLTL's automated loading system handle tubes without jamming, maintaining perfect position throughout. Bundle cradle at 2000 kg (T6300) and 5-station chain loader at 670 kg per station (T8350) for uninterrupted production.
Experience supersonic slitting designed for mass production. The special cutting head slices entire tube lengths in a single pass. The pneumatic smart tube holding system prevents all vibration and distortion throughout the cut.
Hands-on walkthrough of SLTL Bolt — intelligent nesting software minimising material waste. Includes Tube Designer module, Quick Split, Smart Array Nesting, real-time edits, built-in tube library and full e-Tron controller integration.

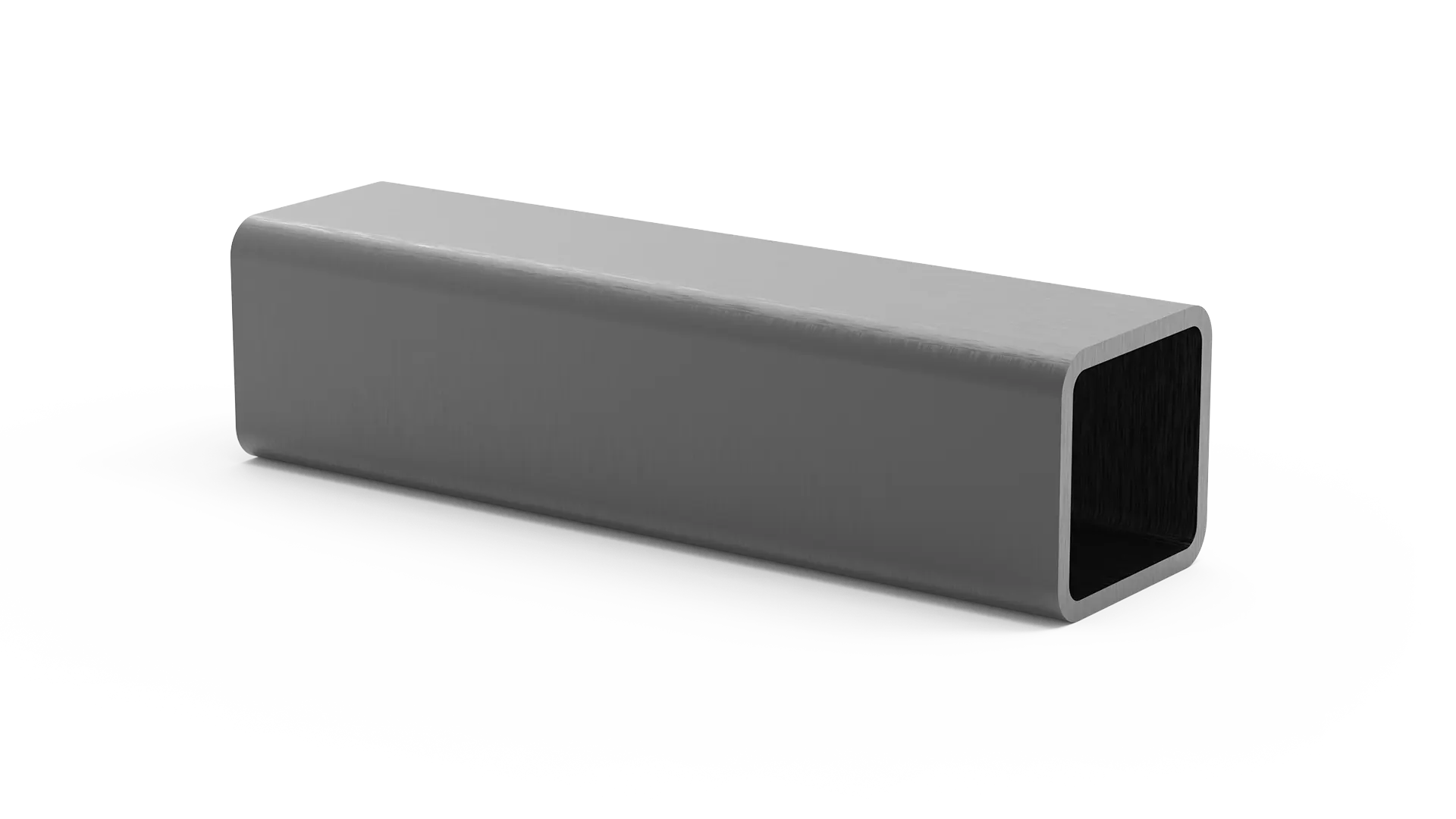

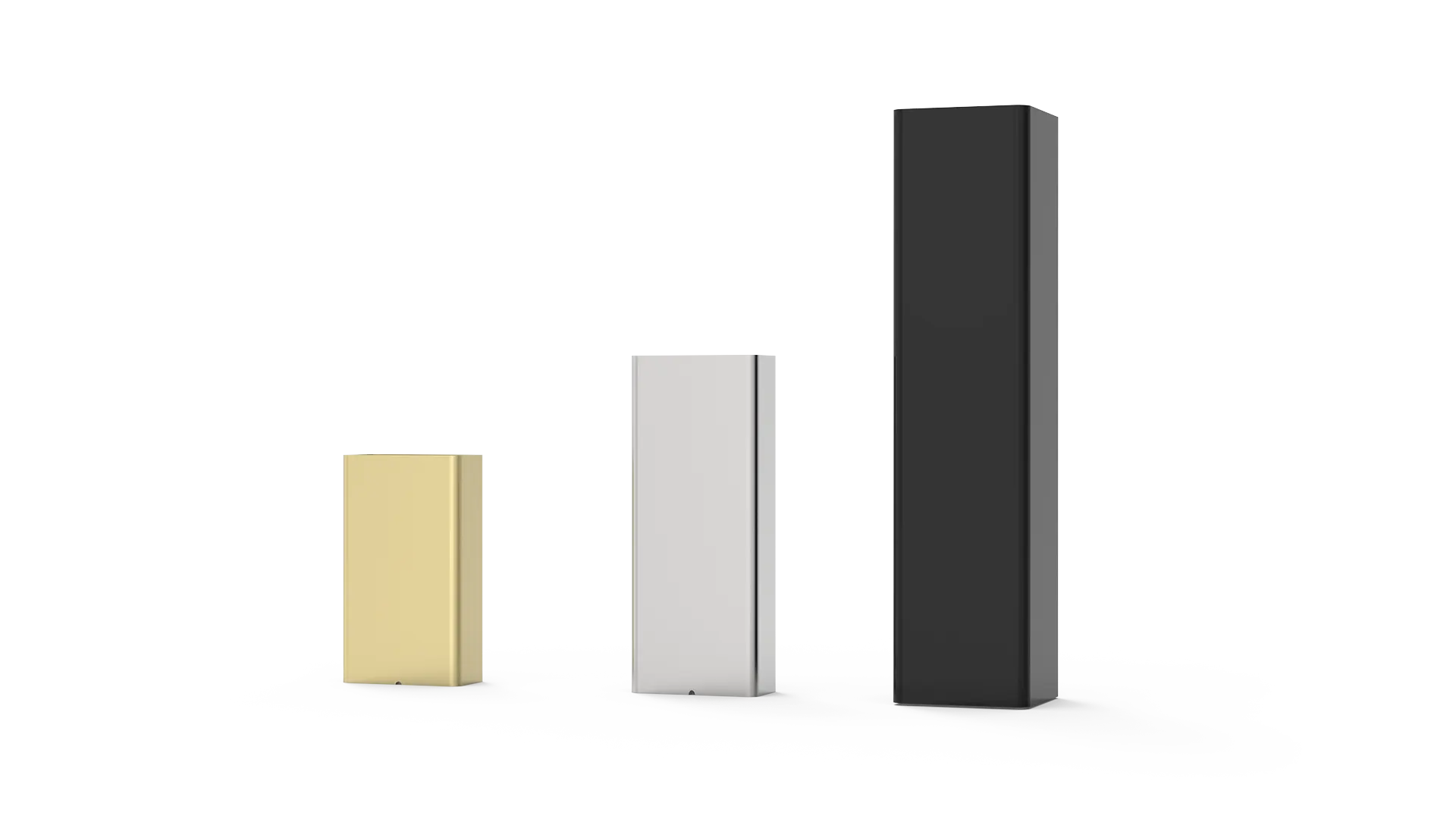

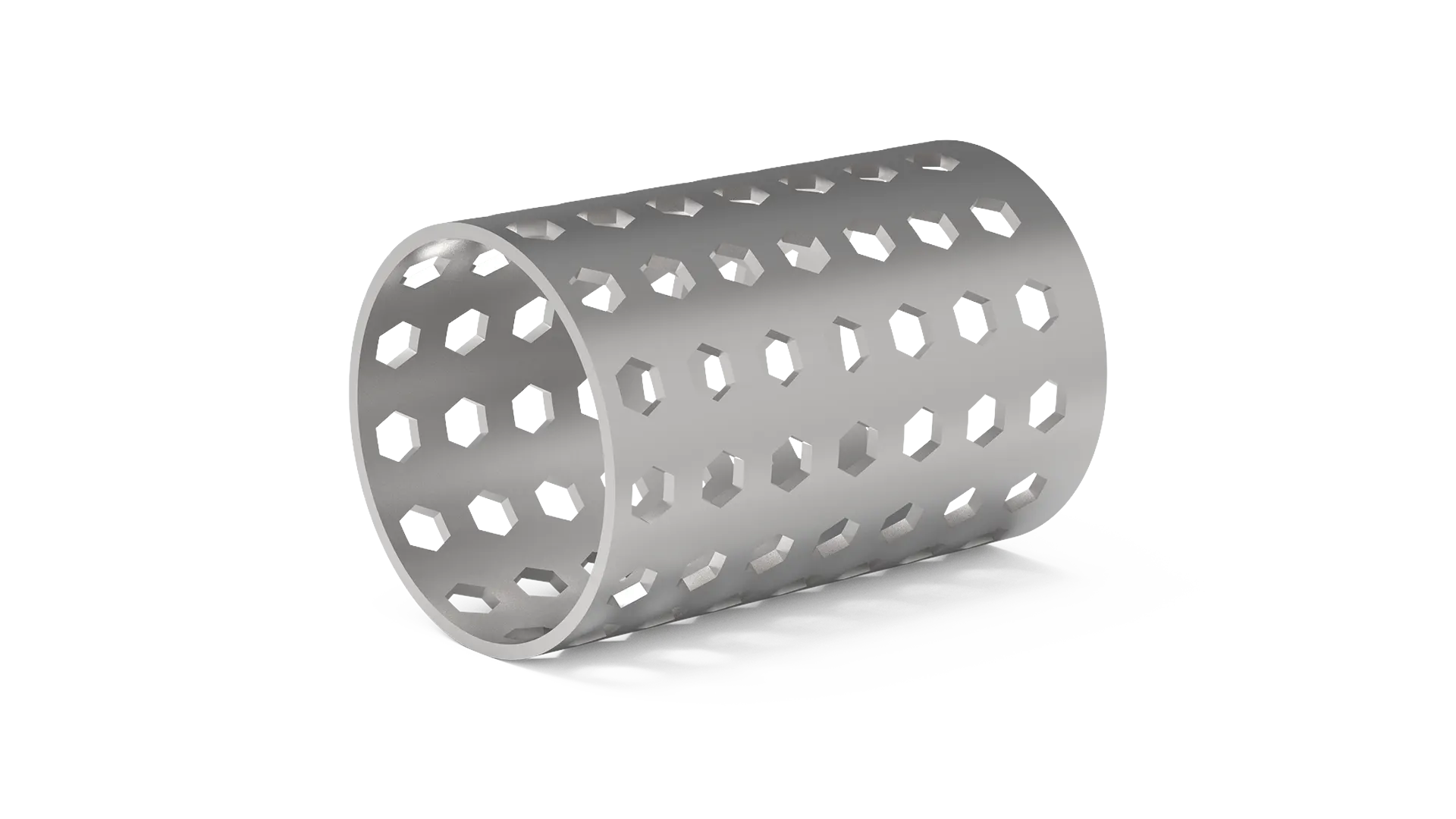

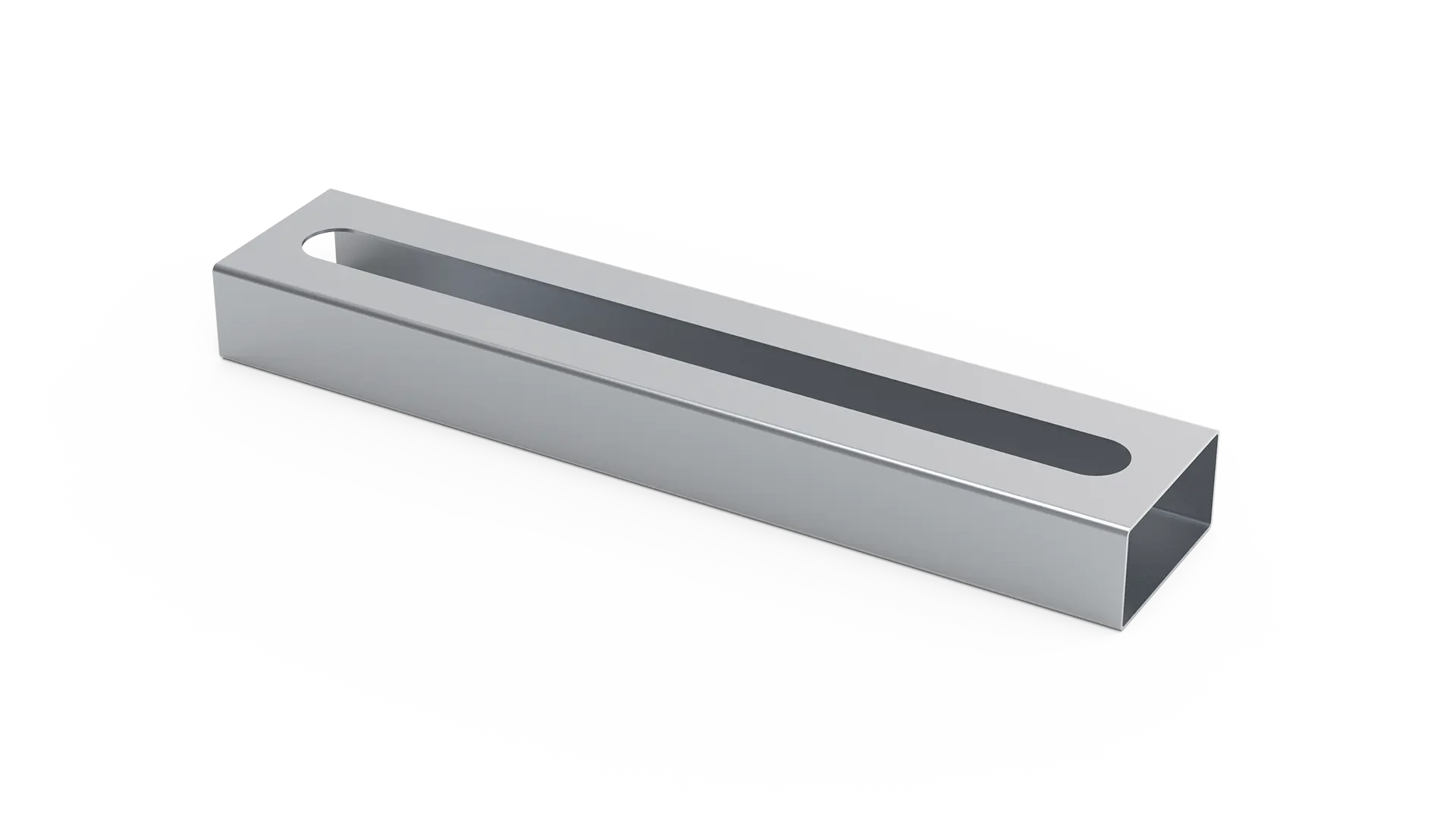

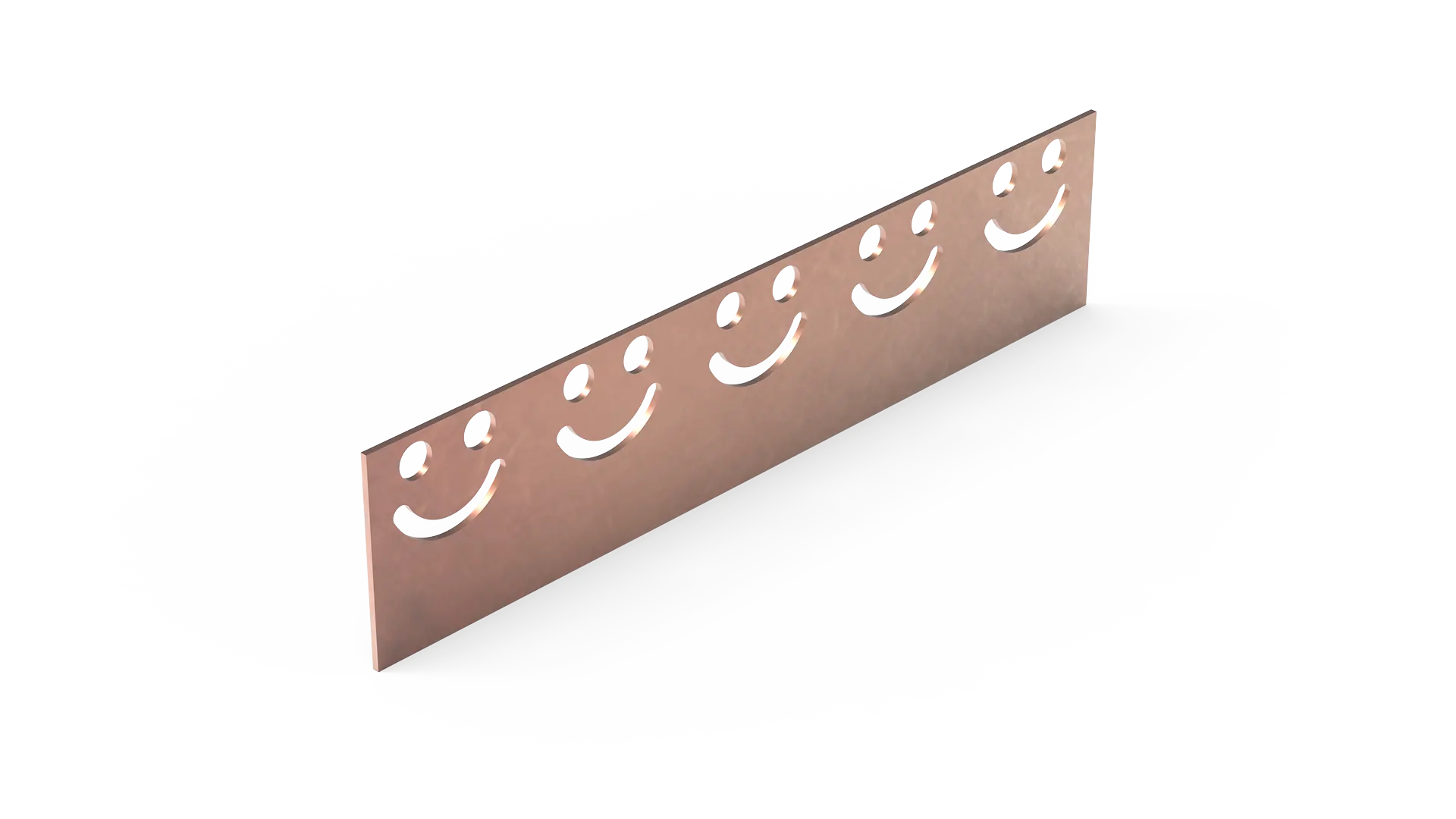

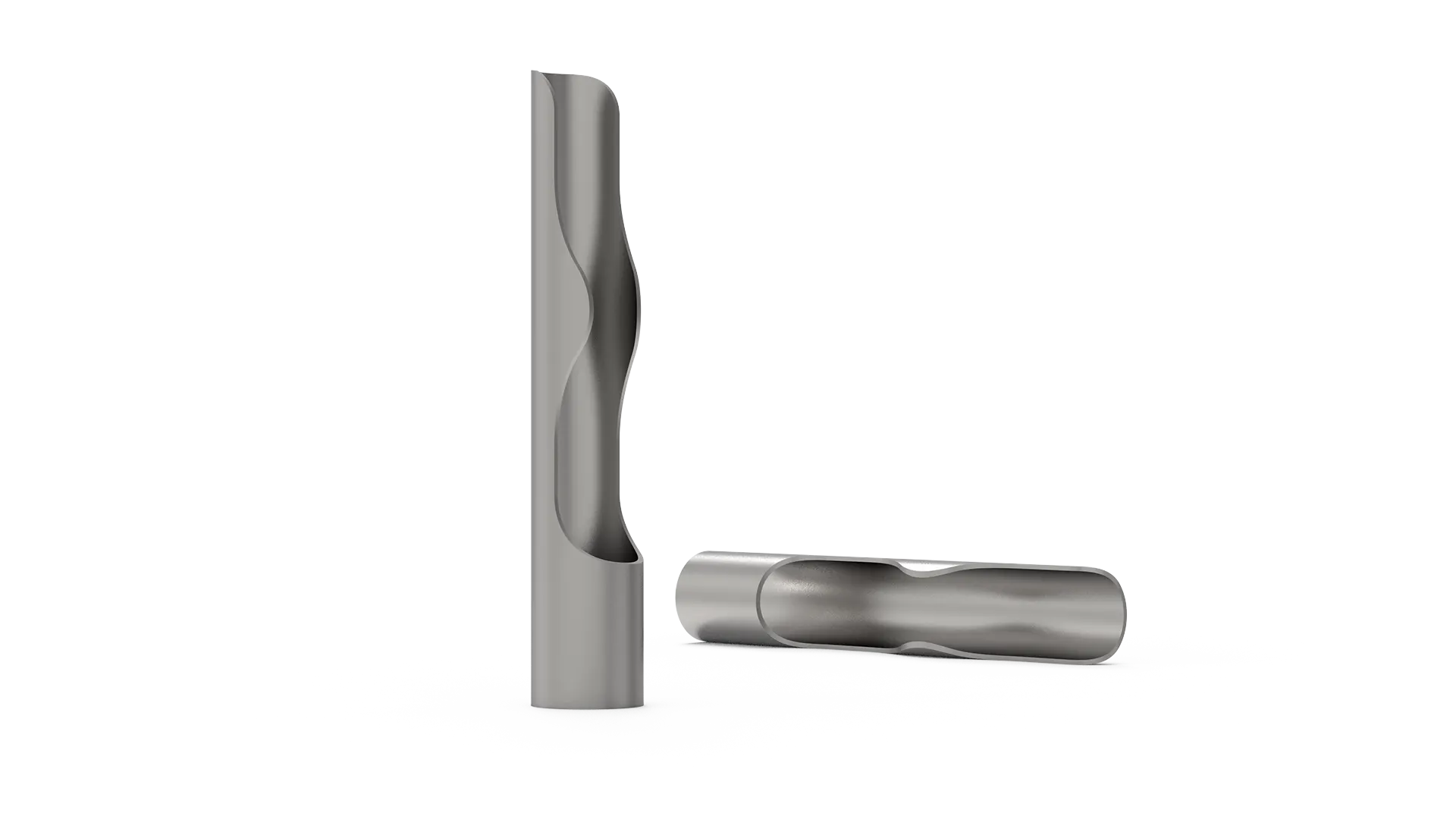

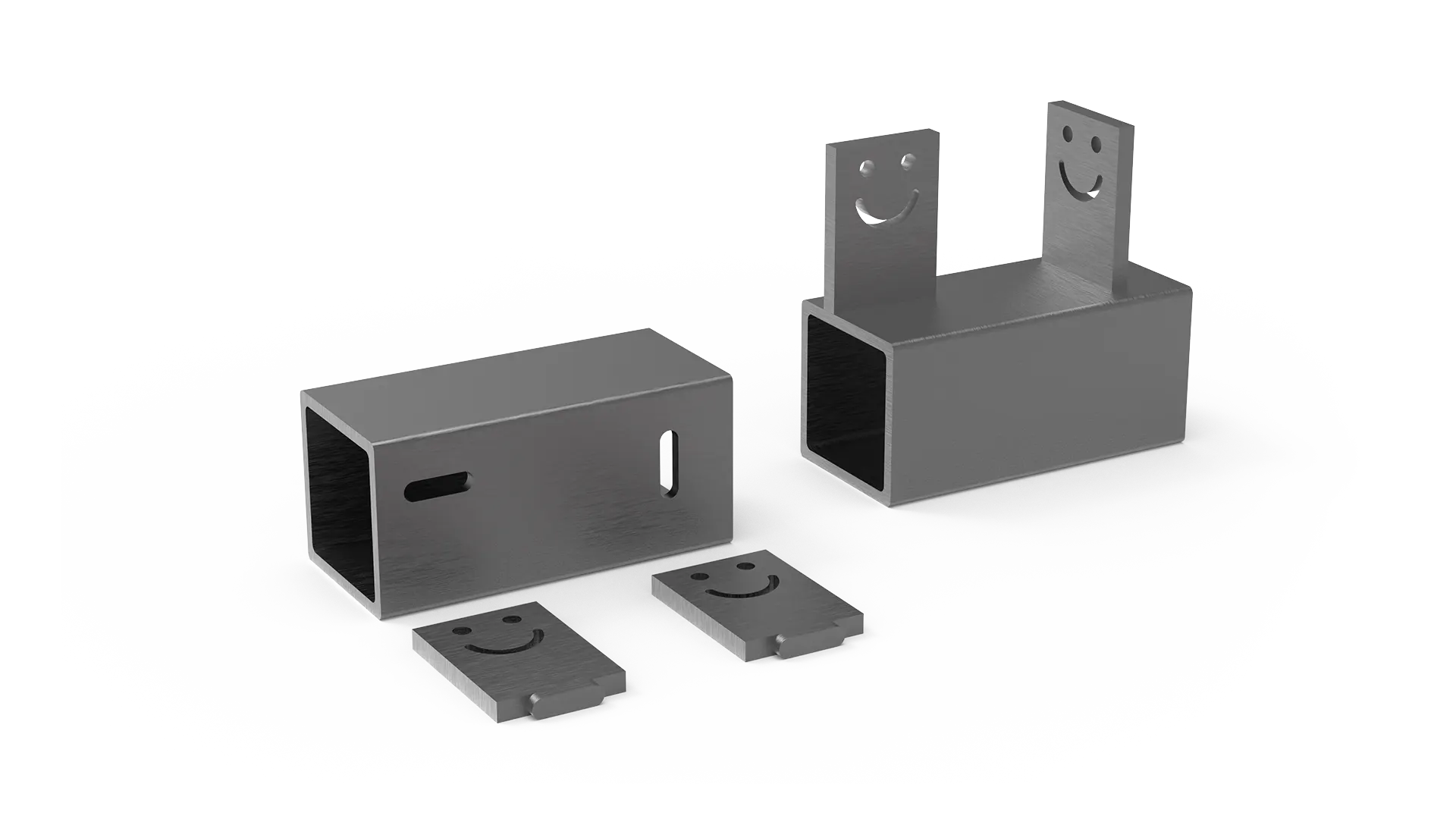

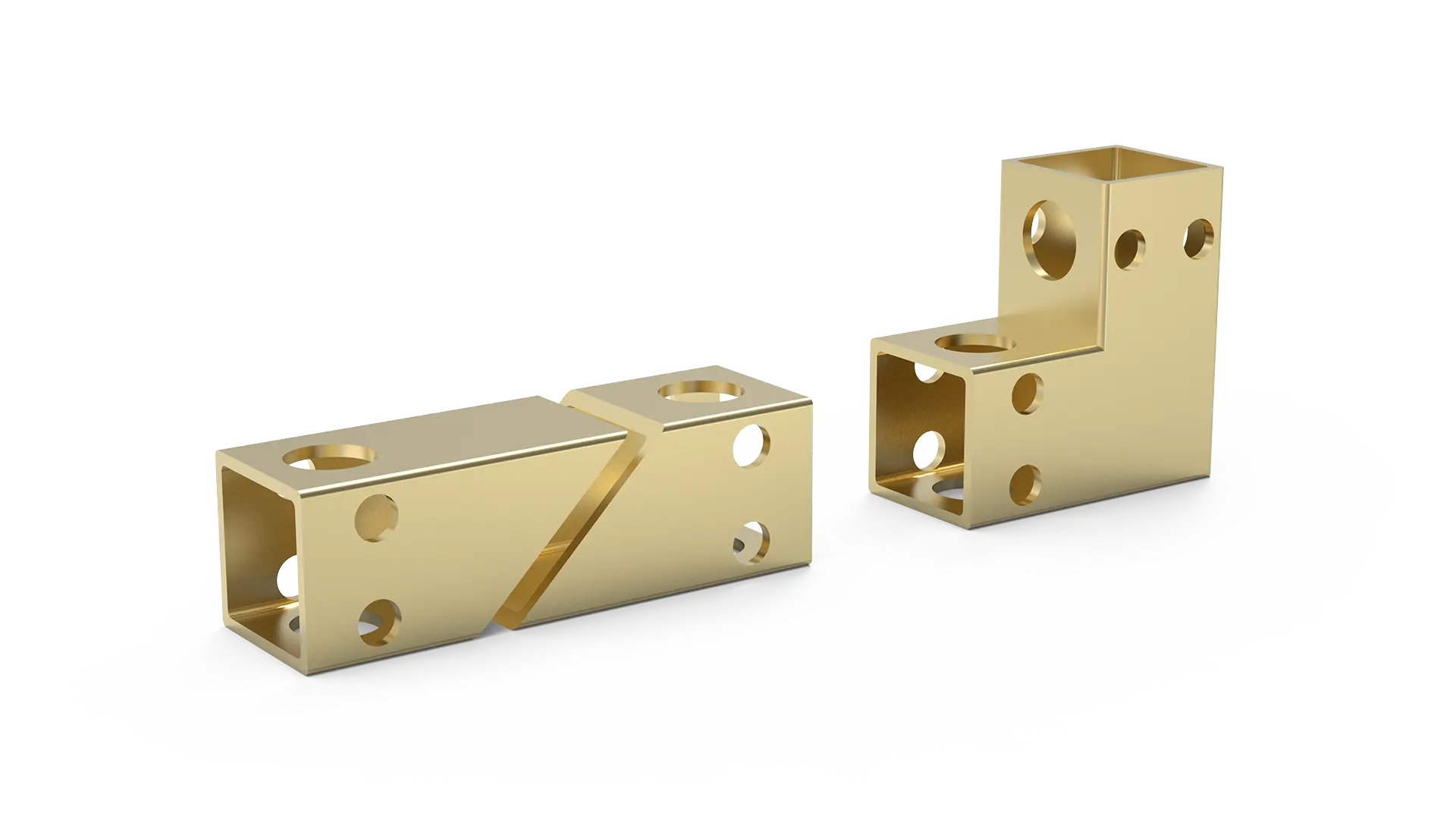

Actual samples cut by SLTL machines — the same quality you will witness live at Demo Day.
A packed day of live machine demos, software sessions and one-on-one consultations.
| Specification | T6150 | T6200 | T6300 | T8350 |
|---|---|---|---|---|
| Max Pipe Cut Length (mm) | 6100 | 6100 | 6100 | 8050 |
| Round Diameter (Ø mm) | 25–180 | 20–200 | 20–300 | 20–360 |
| Rectangle / Square (mm) | 120×120 | 150×150 | 200×200 | 250×250 |
| X-Axis Travel (mm) | 450 | 650 | ||
| Y-Axis Travel (mm) | 6050 | 6500 | 6500 | 9500 |
| Z-Axis Travel (mm) | 180 | 200 | 250 | 350 |
| Max Job Weight (kg) | 140 | 160 | 225 | 670 |
| Master Chuck Dia. (mm) | 180 | 200 | 300 | 350 |
| Positioning Accuracy (mm/m) | ±0.05 | |||
| Repeatability Accuracy (mm/m) | ±0.03 | |||
| Acceleration (m/s²) | 10 | |||
| X-Axis Max Speed (m/min) | 45 | 70 | ||
| Y-Axis Max Speed (m/min) | 70 | |||
| Max Turning Speed (rpm) | 60 | 80 | 50 | 50 |
| Laser Power (kW) | 1, 2, 3, 4, 5, 6 | |||
| Controller | Tube Pro / e-Tron | |||
| * Specifications subject to change without notice | ** Max thickness & length limited by weight capacity of respective variant | ||||
24×7 service support and technical assistance. You're welcome to visit our office for other insights.
E-30, Electronic Estate, G. I. D. C.,
Sector – 26, Gandhinagar – 382 028
Gujarat, India.
Register for Demo Day or send us your queries — our team will respond within a few hours.
