ROBOTIC LASER CUTTING MACHINE

Introducing a next-gen robotic laser cutting system built for unmatched precision, speed, and operator safety. With a 1440 mm robotic reach, 270° rotation, and front-end laser safety doors, it delivers flexible, automated, and high-quality cutting helping industries achieve faster throughput, minimal downtime, and maximum productivity.

Precision Laser Cutting Machine

For Accurate, Clean, and Efficient Hole Cutting on Dish Ends

High-Precision Dual-Station Laser Cutting Machine

The customer needed a solution to cut precise holes in the dish ends of large stainless-steel fuel tanks with flexibility to handle various radii, while maintaining superior cutting quality and speed. They opted for a laser cutting machine that offers:

  • Handles SS dish ends from 450 mm to 650 mm diameter
  • Customizable hole sizes as per requirement
  • Dual-station setup for simultaneous loading and unloading
  • Minimal downtime with higher productivity
  • Bevel cutting capability for MS, SS, and multiple metals
  • High precision & clean cuts for consistent quality

Get to know your Robotic Laser Cutting Machine

Precision, Flexibility & Safety in One Solution

This advanced robotic laser cutting system is a fully automated solution designed to deliver exceptional precision, speed, and operator safety for demanding industrial applications. Featuring a high-performance robot with a 1440 mm reach and 270° rotation, it provides maximum flexibility to handle even the most complex and intricate cutting requirements with ease. The integration of front-end laser safety doors ensures a secure working environment, protecting operators while maintaining continuous productivity. By combining automation, high accuracy, and robust safety mechanisms, this system significantly enhances cutting quality, reduces cycle times, minimizes downtime, and ultimately boosts overall operational efficiency for manufacturers.

  • Technical Specification
Parameters Description
Model SPM
Robot Six axis, Model-AR1440, Yaskawa
Robot Reach Max. Robot Reach is 1.4mtr
Application Robotic Laser cutting of Dish-end of Min. Dia.- 440mm, Max. Dia.-660mm
Type of Product Handling Manual Loading and Unloading
Max laser power 3000Watt
Laser medium Fiber Laser
Power required 440V 3Phase (50-60HZ)
Whole System Weight (Robot, Laser source, Chiller, Elec. Panel, Controller) 800 Kgs Approx.
Machine Size (L X W X H) (Approx.) (3600 x 3600 x 2010) mm
Require Floor Area 7500×5200 mm, H-3100mm

Robotic Laser Cutting Machine for Dish Ends

  • Model
  • Robot
  • Application
  • Laser Power
  • Product Handling
  • Power Requirement
  • System Weight
  • Machine Size & Floor Space
  • Dual Station Setup
  • Safety Features

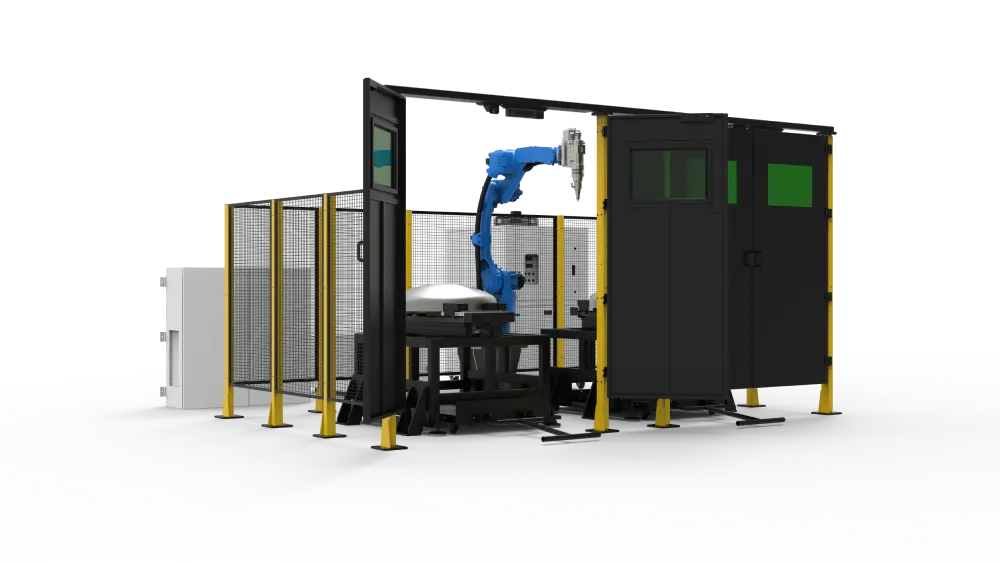

Model

Specially designed Robotic Laser Cutting System - Model SPM, engineered for precision and flexibility in dish end cutting applications.

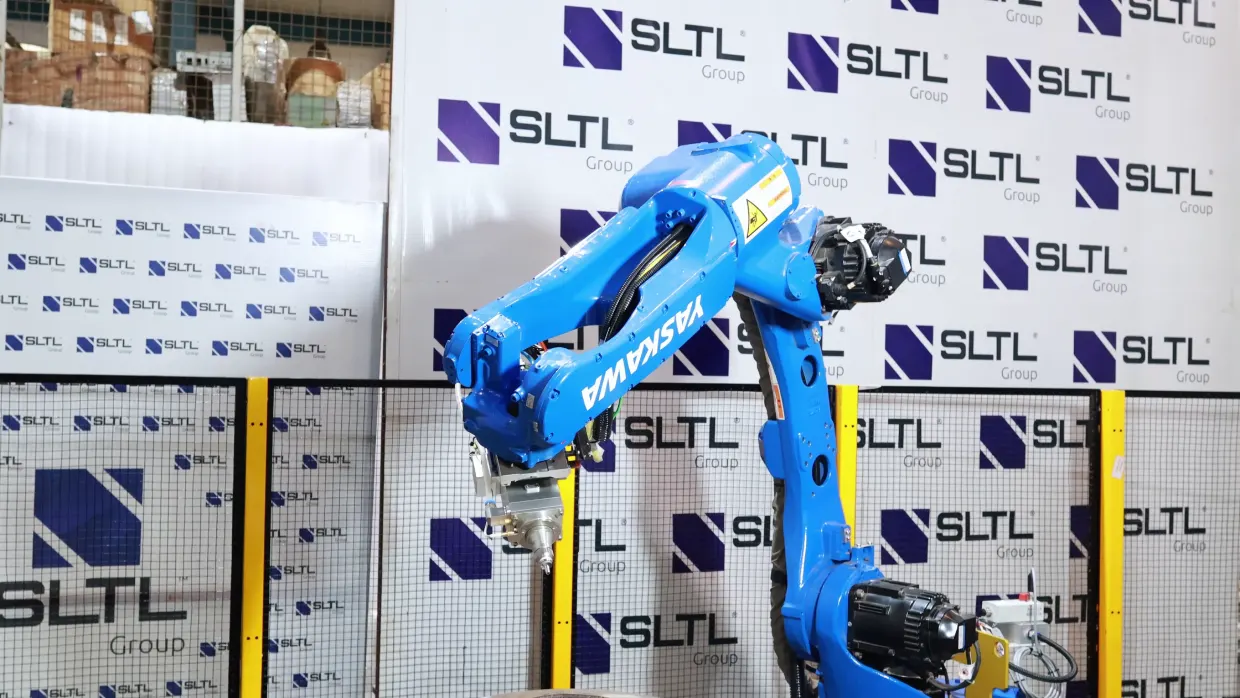

Robot

Equipped with a Six-Axis Yaskawa AR1440 Robot, offering a maximum reach of 1440 mm and 270° rotation for smooth, accurate movement and superior cutting performance.

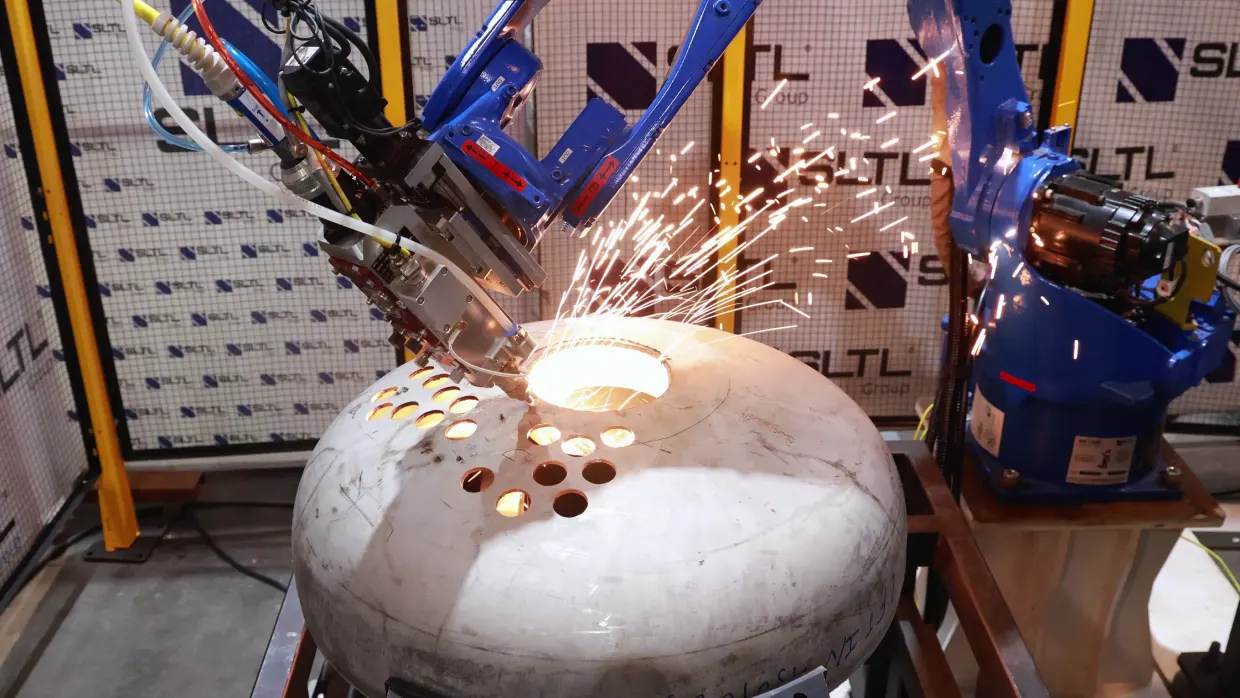

Application

Designed for Precision Cutting of Dish Ends ranging from 440 mm to 660 mm in diameter, ensuring consistent, high-quality results for every job.

Laser Power

Integrated with a 3000W Fiber Laser, delivering powerful, clean, and consistent cuts even on tough stainless steel surfaces.

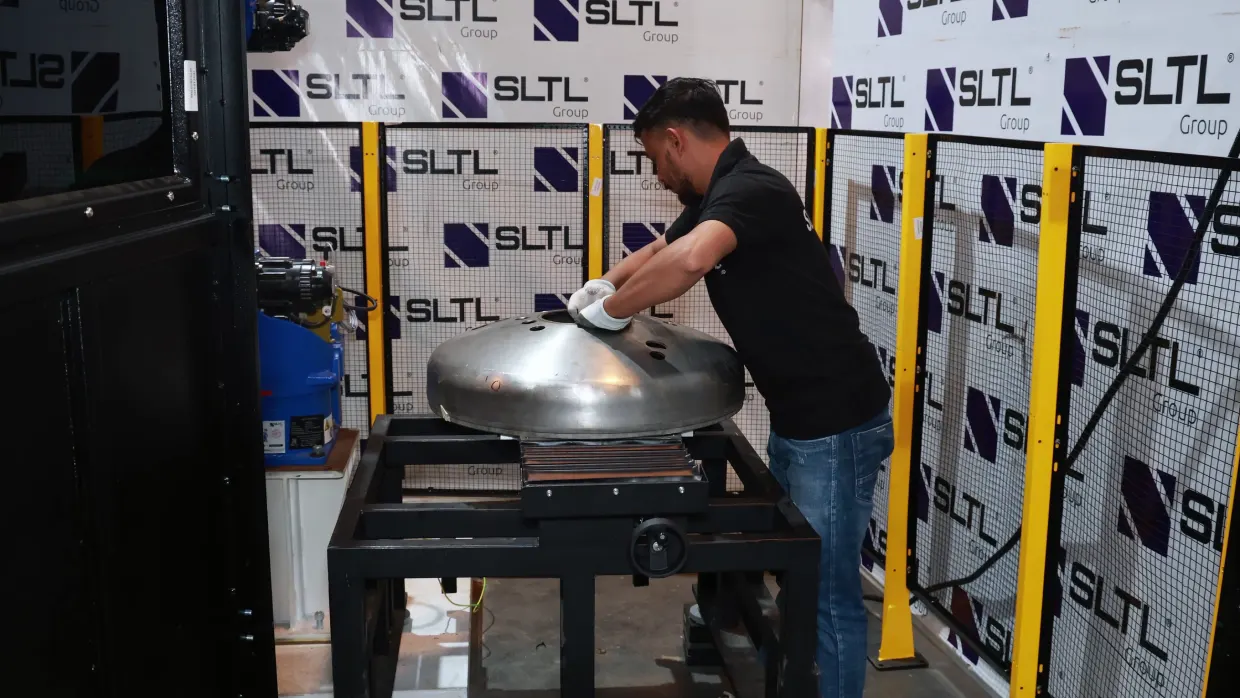

Product Handling

Features Manual Loading and Unloading, giving operators control and flexibility while maintaining workflow efficiency.

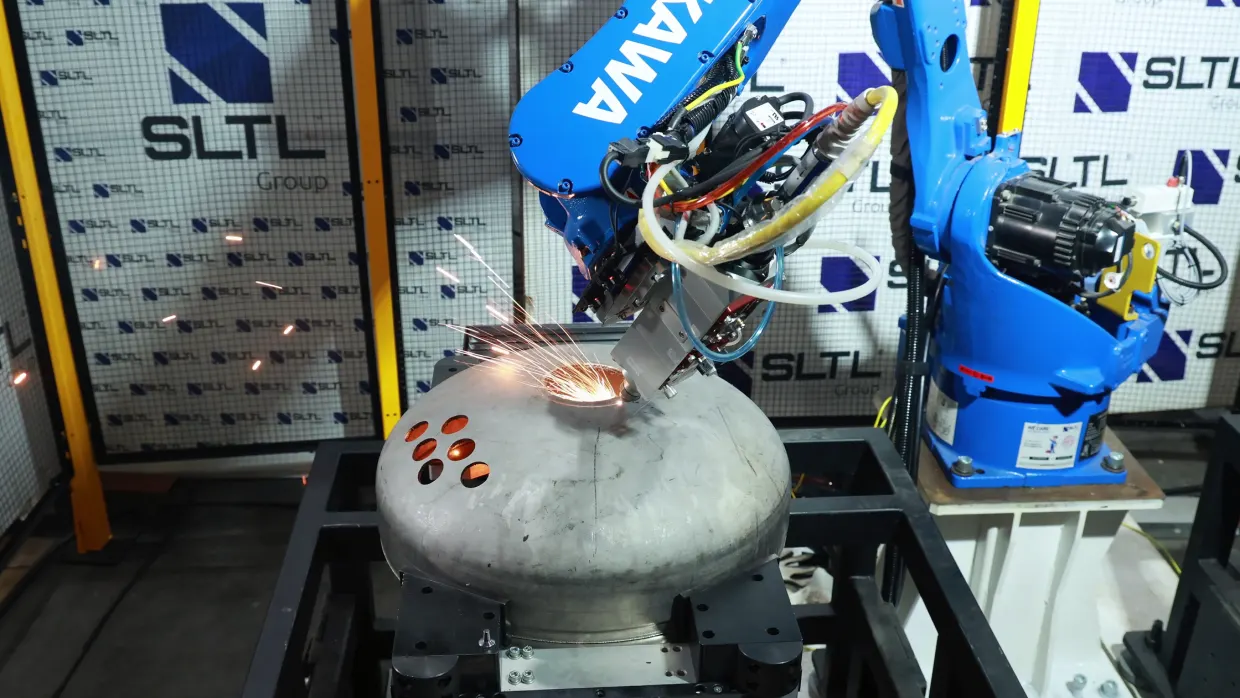

Power Requirement

Runs on a 440V, 3-Phase, 50-60 Hz Supply, making it suitable for standard industrial power setups.

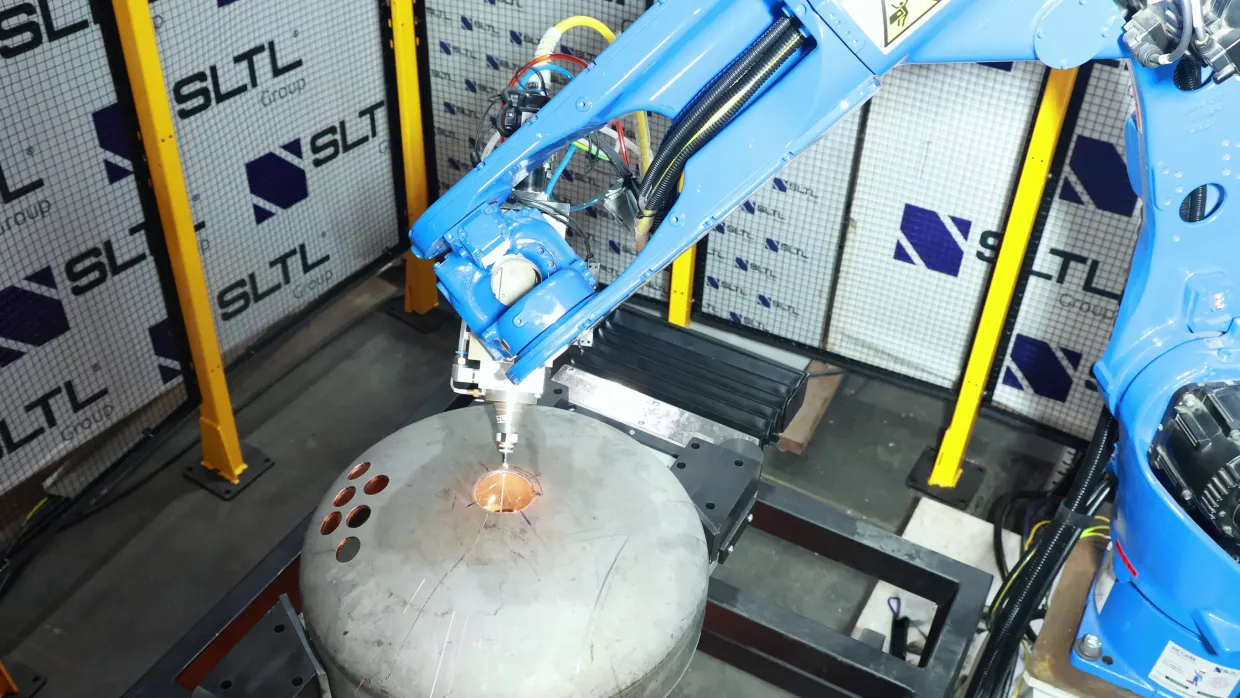

System Weight

Weighs approximately 800 kg, including robot, laser source, chiller, electrical panel, and controller - offering a compact yet robust solution.

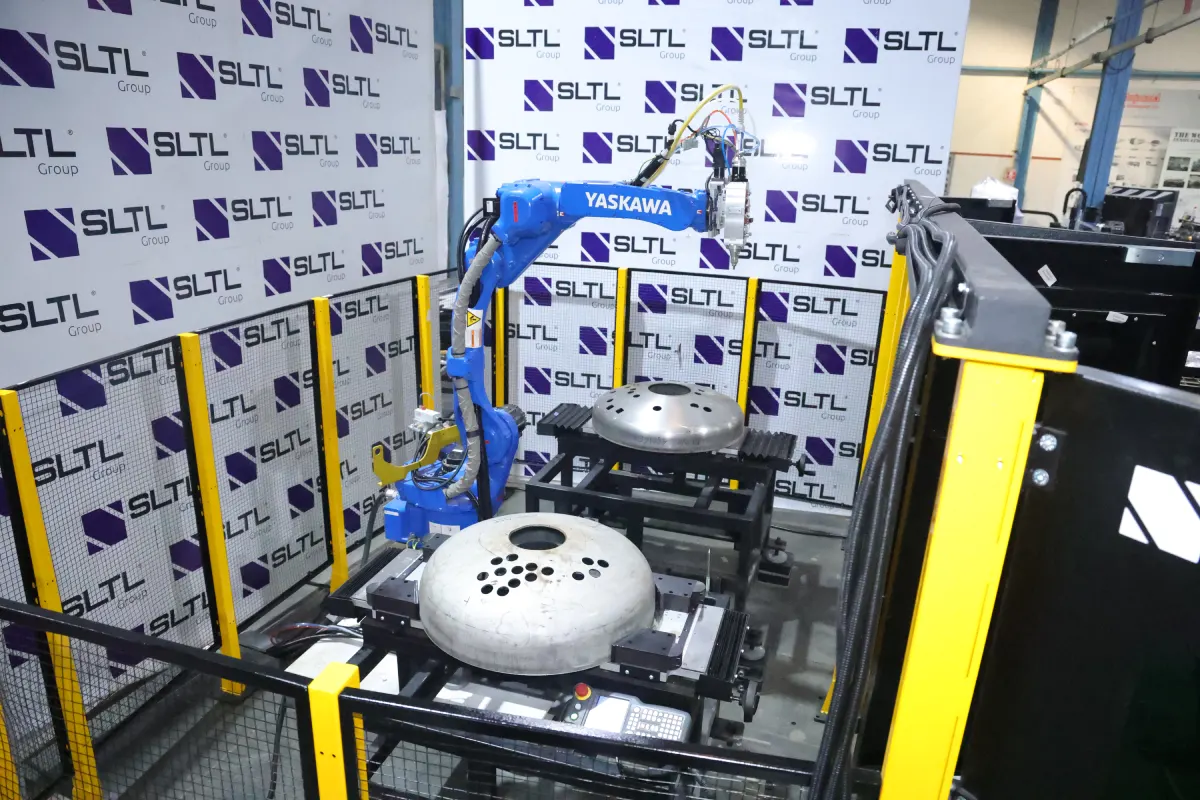

Machine Size & Floor Space

Machine dimensions are 3600 × 3600 × 2010 mm (L × W × H) and requires 7500 × 5200 mm floor space with a 3100 mm clearance, ideal for medium-scale setups.

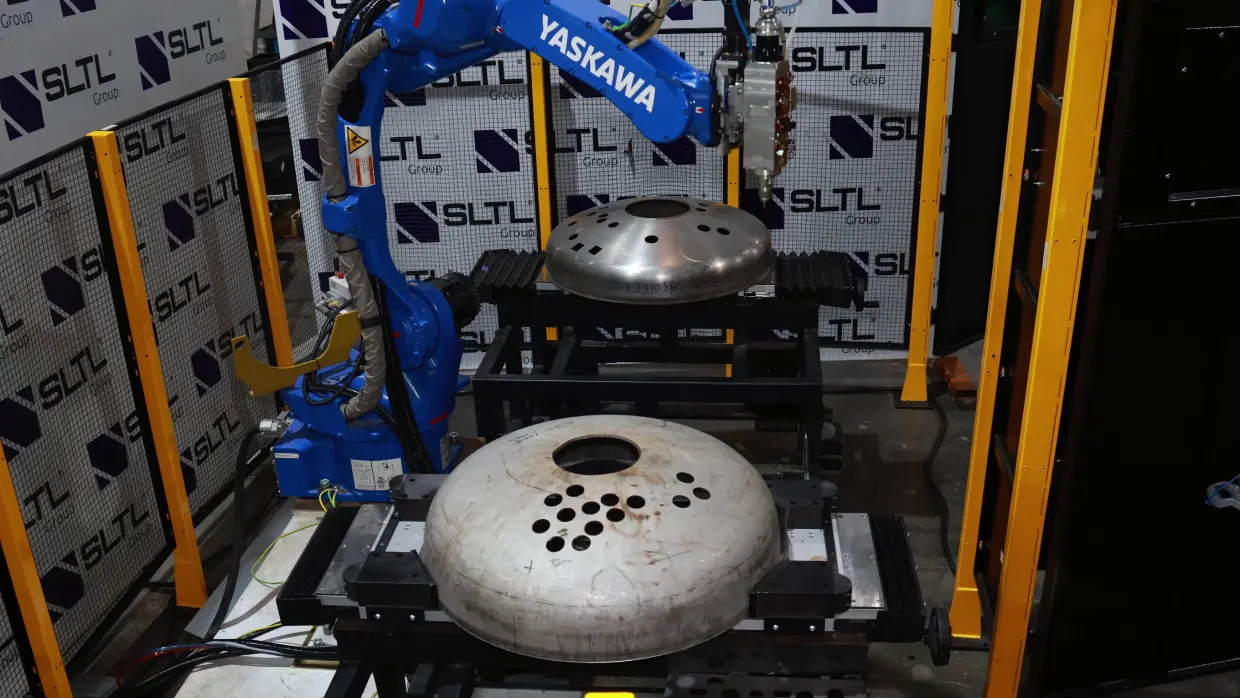

Dual Station Setup

Incorporates Two Stations with Self-Centering Adjustable Vices, allowing simultaneous loading and unloading to reduce downtime and boost productivity.

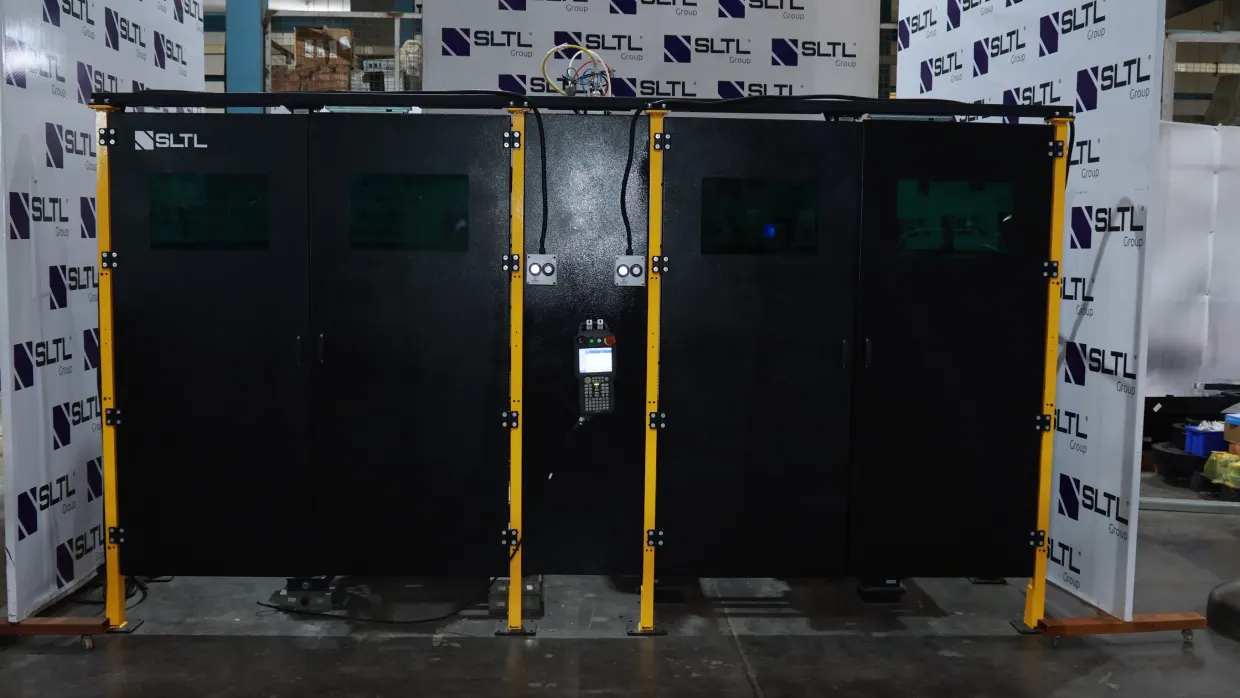

Safety Features

Fitted with Laser Safety Doors at the Front, ensuring operator safety and compliance with industrial safety standards.
